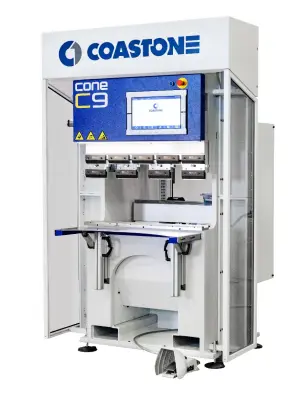

AUTOMEC-COASTONE C9 C- Frame- Small Press Brake
Have one to sell?
ConditionNew
New
The small CoastOne press brakes are great machines for bending small parts fast and accurately (0.00008”). They can be easily transported around a shop with a forklift. Customers can free up capacity on larger machines with these energy efficient, quiet, work-horses. If you need an extremely accurate, repeatable and fast machine, this is the undoubtably the right choice for your application.
Tonnage 25 ton
Max. bending length 33.5”/2.79’
Distance between frames 31.0”
Throat depth 7.87”
Open height max 15.75”
Open height min 9.84”
Y axis strokelength 5.91”
Y axis speed, approach/return 236 IPM
Y axis speed, forming max 23.6 IPM
Y axisaccuracy +/- 0.000079”
X axisstroke 15.75”
X axisspeed 14.76 IPS
X axisaccuracy +/- 0.001”
R axisstroke 5.32”
R axisspeed 236 IPM
Motor power 6.7 HP
Machine weight 4,409 lbs.
Machine width, foot to foot 43.5
Machine width, frame 34.17”
Machine depth 47.24”
Machine height 82.68”
Control Omron
Servo motor Yaskawa/ Panasonic
Ball screws 1
The small CoastOne press brakes are great machines for bending small parts fast and accurately (0.00008”). They can be easily transported around a shop with a forklift. Customers can free up capacity on larger machines with these energy efficient, quiet, work-horses. If you need an extremely accurate, repeatable and fast machine, this is the undoubtably the right choice for your application.
SERVO-ELECTRIC - NO HYDRAULIC PUMPS OR FLUIDS
• No oil, no waste treatment, no leakage
• Saves energy (many customers claim 2/3 energy savings)
• Less maintenance
• Extremely fast and accurate
•Temperature stability
• Environmentally friendly
• Direct drive system - no belts and pulleys
C- Frames- Small Press Brakes
• C-Frames have open access from the side (no restriction w/ side-frames)
• Can use longer tools for thin bending
• Longer boxes can be bent
• C-Frames are ideal for small press brakes, as their frames are usually very stiff
Tonnage 25 ton
Max. bending length 33.5”/2.79’
Distance between frames 31.0”
Throat depth 7.87”
Open height max 15.75”
Open height min 9.84”
Y axis strokelength 5.91”
Y axis speed, approach/return 236 IPM
Y axis speed, forming max 23.6 IPM
Y axisaccuracy +/- 0.000079”
X axisstroke 15.75”
X axisspeed 14.76 IPS
X axisaccuracy +/- 0.001”
R axisstroke 5.32”
R axisspeed 236 IPM
Motor power 6.7 HP
Machine weight 4,409 lbs.
Machine width, foot to foot 43.5
Machine width, frame 34.17”
Machine depth 47.24”
Machine height 82.68”
Control Omron
Servo motor Yaskawa/ Panasonic
Ball screws 1
