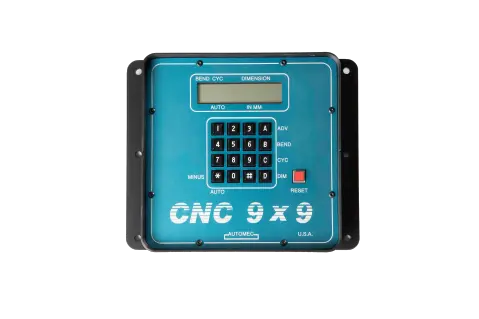

CNC 9x9 AUTOGAUGE CONTROL
CNC & N/C Controls
THE ECONOMICAL ALTERNATIVE
The CNC 9x9 coupled with the Autogauge series of Automec backgauges gives the user an economical solution for single axis backgauge applications.
The system can be used for single bend “go to” positioning or a sequence of up to 9 bends with up to 9 repeats of identical bends can be programmed.
The CNC 9x9 retains the same speed, accuracy, and repeatability as provided by Automec’s higher end controls at a more affordable price. The system features bend allowance and inch/ mm conversion.
CNC 9x9 was developed as a low-cost solution to be used with Automec’s Autogauge line and can be ordered with most Automec backgauges. (See quote form for details.)
9 bends per job
9 cycles per bend
Bend allowance ± .999 ̋
.001 ̋ resolution
1/2 ̋ LCD display
In/mm conversion
Tactile feel pushbuttons
5 year flash memory backup
Control size:
Height 8-1/3 ̋ x Width 10 ̋ x Depth 2-1/4 ̋
Input power:
115 VAC ± 10% 50/60HZ, 1A MAX
