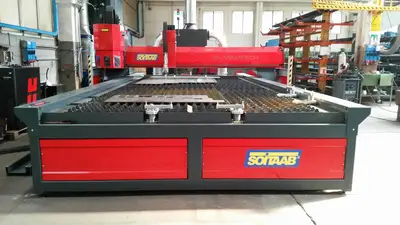

Plasma NOVA

Description

Plasma NOVA integrates multiple technologies and features to meet the most complex production requirements.

In a single set-up, this machine can complete many complex operations for plasma and oxyfuel cutting, drilling, tapping, bevel cutting, pipe cutting, marking, and automatic material handling to optimize the production cycle. The Plasma NOVA is designed to cut ferrous, stainless steel and aluminum materials in medium to high thicknesses.

Dual brushless drives provide high accuracy gantry positioning. The linear guide ways and a helical rack and pinion are mounted with downward facing teeth, protecting them from slag deposits and dust. All guide ways are protected and the machine meets all CE safety regulations, making the Plasma NOVA possibly the safest machine ever made.

Accessories: Vertical oxy fuel unit – (max n° 1) | Side extension of the beam (cantilever) for pipe cutting | Plasma bevel head | Automatic pallet exchange | Automatic plate alignment by laser pointer device

Special Accessories: TCT―Tubocut device for pipe cutting | RHDT―Drilling and tapping revolving head and tool changer | SPT―Programmable bevel head | MDS―Marking system | OFC―Oxyfuel carriage | SDP―Special drilling pre-hole for thick plate oxy-fuel cutting

Main Features
• One-piece welded frame made from square pro le beams
• Entire assembly is machined in one position on Soitaab’s 16 ft. x 65 ft. CNC boring and milling machine
• Integrated cutting table is completely stand-alone
• Table is divided into sections focusing fume extraction under the torches
• Table dampers automatically opened in 2 lateral channels
• Side access scrap drawers for easy scrap removal
• Servo-driven plasma carriage controlled by the CNC
• Z axis with automatic arc voltage height control (AVC)
• TAG automatic initial positioning by touch sensing or Ohmic contact for thin materials
• Magnetic torch breakaway anti-collision device
• Soitaab Human Machine Interface (SHMI)
Touch screen monitor with user friendly CNC control
