LineaTech NOVA
Have one to sell?
ConditionNew
New
LineaTech NOVA offers the widest range of solutions for plasma cutting, oxyfuel, drilling, tapping, and marking.
The modular design allows you to easily add work stations for oxyfuel or plasma bevel cutting, drilling, tapping, automatic tool changers, and a variety of plate markers. Dedicated software developed entirely by Soitaab allows the system to work in perfect harmony through an intuitive and easy to use operator interface. The rigid double beam construction completely protects all linear guides and moving parts.
MAIN FEATURES
• Dual side drive with brushless motors and digital drives
• Smooth helical tooth rack with preloaded spring assures accurate positioning with minimum backlash
• Absolute Encoders hold machine position is held in memory
• Cutting widths up to 26.3 ft (8.0 m)
• Cutting lengths up to 262.5 ft (80.0 m)

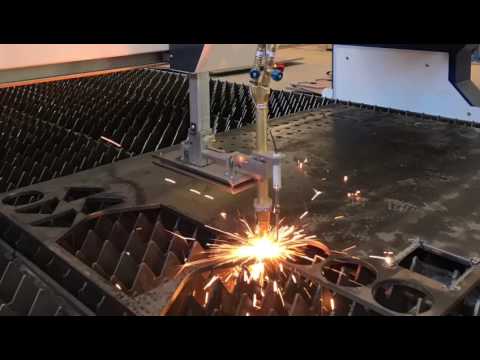

• Oxyfuel gas distribution valves fully managed by the CNC
• Cutting parameter data base adjusts gas pressures and flows automatically, ensuring high quality cuts and holes
• Automatic electronic ignition
• Automatic height control with both internal and external capacitive probes
• LCD control panel with 15 in TFT color touch screen
• 78 piece shape library with all cut parameters
ACCESSORIES
• Markers (micro dot, punching, plasma, and powder marking)
• Drilling head with automatic tool changer
• Graphic cut simulation with complete tool path
• Import DXF and DWG files
• Simple and intuitive graphical control menu
• Sheet alignment, rotation, and scale programs
• Remote diagnostics and service
• Automatic damper fume extraction
LINEATECH NOVA+
All of the features of NOVA but with a reinforced heavy duty beam for the ISO50 drilling head.
Rail span (min-max): 13 ft up to23 ft (4.0 m up to7.0 m)
Machine length: 6.5 ft (2.0 m)
Machine use length with 4 m rails: 6.5 ft (2.0 m)
Longitudinal rails beam support: HEB - STD 7 in (180 mm)
Transversal beam construction: Double
Transversal guides: Roller-bearing guides
Rack: Helical teeth
Longitudinal motion: Dual side drives
Repositioning speed: 787 ipm (20 m/min)
Max no. of master carriage: 3
Max no. of slave carriage (plasma): 2
Max no. of slave carriage (oxy): 12
Double master: 2 plasma + 1 oxy (or combination)
Gas distribution (oxy): Automatic
Max cutting thickness (oxy): 10 in – 12 in (250-300 mm)
Gas for oxy flame: Oxygen, propane, methane, acetylene
Max plasma power: Up to 800 Amps
Plasma bevel: Yes
Oxy bevel: MR + -90°
Drilling unit type: ISO 30 for prehole, ISO 40 internal cooling
Tool changer type: Automatic (6 or 12)
Tubocut type (pipe cutting): Manual lifting (automatic optional)
Pipe diameter: 3 in - 25.5 in (76 mm - 650 mm)
