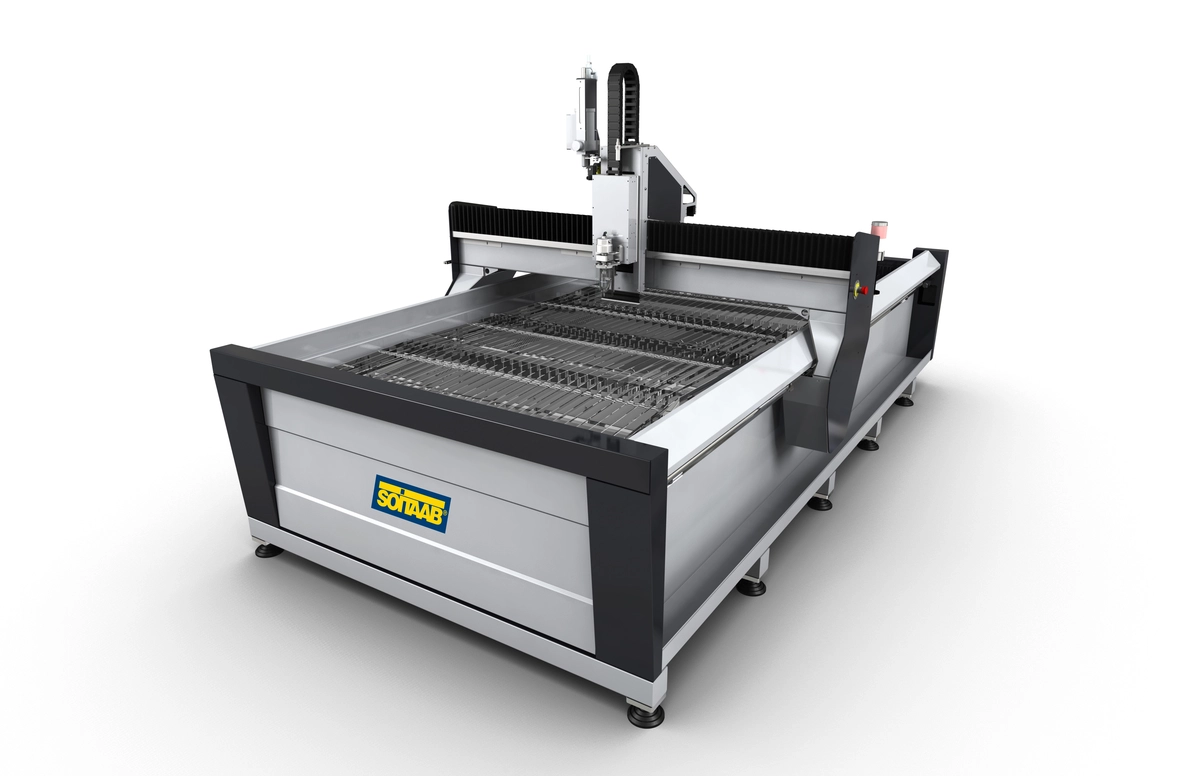

WaterTech Pro

Description

WaterTech Pro is the “plug and play” waterjet solution that meets the basic requirements of an economical solution that is easy to use.
Cuttingefficiencyandqualityareguaranteedbythehigheststandardsofde - sign and construction. Water PRO can be combined with pumps from 15 to 60 hp. Designed with work envelopes from 39 in. x 39 in. up to 5 ft. x 13 ft. making this a versatile and productive solution.

About WaterTech Pro
• Integrated water tank
• Water tank with slats or grids for the plate support
• Brushless Motors with rack and pinion motion
• Rapid speed – 10 mt /min ( 33 ft/min)
• Accurancy +-0,1 mm
• Easy material loading and unloading from 3 sides
• Automatic initial positioning of the head by means of mechanical sensor
• Dedicated software for water jet technology and Soitaab data base for cutting parameters
• Abrasive bulk transfer of 200 kg capacity (440 pounds)
• 60.000 PSI HP pump
• HP pumps available: 30 Hp, 50 Hp and 60 Hp

Available working area:
1000 x 1000 mm (3,3’x3,3’)
1000 x 2000 mm ( 3,3’x 6,6’)
1500 x 3000 mm ( 5’x10’)
1500 x 4000 mm (5’x12’)

Main Features
• Rack and pinion drive system
• Linear guides on the longitudinal axis
• 2 linear guides on transverse beam
• Self lubrication system for all guides
• Bellows protection on all axis
• Optional Stainless steel water and abrasive tank
• Pressurized two-stage abrasive metering system
• Water table tank with manual water level controls
• Ready for future installation of an abrasive removal system
• Cutting table parameters with quality selections from 1 to 5
