WaterTech Nova
Have one to sell?
ConditionNew
New

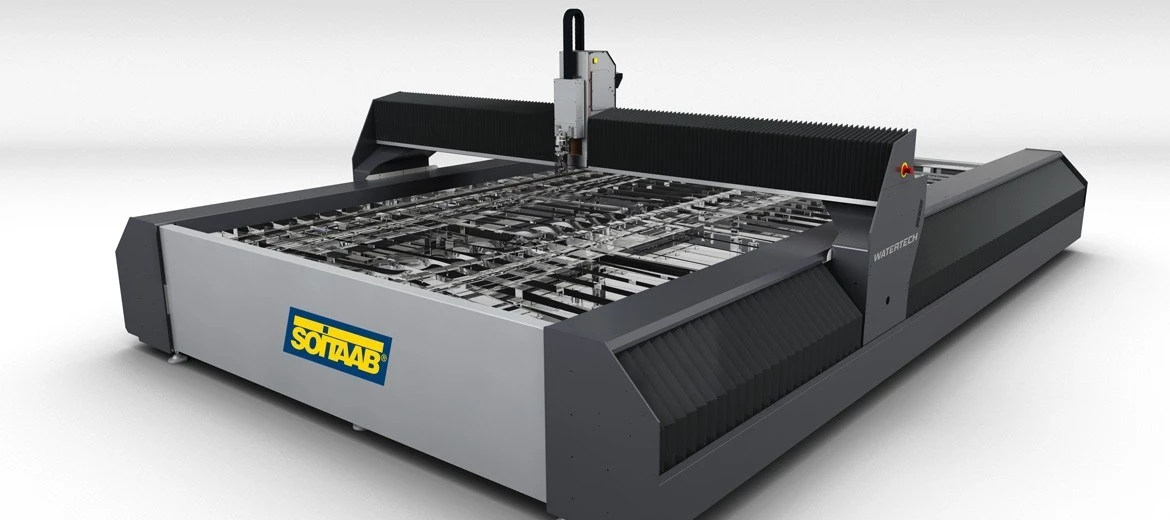

WaterTech Nova is a technologically advanced solution meeting the highest productivity, versatility and efficiency demands.
The independent gantry structure and the separate tank give the machine a uniquely solid structure and meets the highest precision characteristics, ma- king it possible to achieve high cutting performance in the harshest production environments. The advanced parameters of the CAD/CAM software combined with Soitaab’s intuitive and ease to use CNC HMI, allow the operator to achieve the highest production standards and optimized work cycles.
Soitaab’s WaterTech Nova is the heavy duty and modular solution for big size Waterjet CNC cutting machines.
The WaterTech NOVA meets the highest productivity, versatility and efficiency requirements.
• Modular design machine with independent and separate watertable
• Water tank with slats or grids for the plate support
• Rack and pinion with helical teeth on all axis
• Positionning speed 40 m / min (132 ft/min)
• Precision 0.05 mm
• 5 axis bevel head ( option), +-60 degrees
• Detached CNC control cabinet
• Dedicated software with Soitaab Cutting Parameter tables for 2d and 3d cutting
• Abrasive bulk transfer of 200 kg capacity ( 440 pounds)
• Abrasive metering feeder controlled from the CNC and the data base feeding parameters
• Availabale with High Pressure Water pumps from 60.000 to 90.000 PSI
• Water Pump HP available: 30hp, 50hp, 60hp, 75hp. 100hp, and 150hp
• Working area from 5ft to 10 ft in width and from 12 ft to 40 ft in length.
Main Features
• Dual drive brushless motors and gantry control
• Rack and pinion drive system
• Linear guides on the longitudinal axis
• 2 linear guides on transverse beam
• Self lubrication system for all guides
• Bellows protection on all axis, including double bellows protection on longitudinal axis, inner bellows covers linear guideways, and external bellows covers internal bellows
• Stainless steel water and abrasive tank
• Pressurized two-stage abrasive metering system
• Water table tank with manual water level controls
• Ready for future installation of an abrasive removal system
• Cutting table parameters with quality selections from 1 to 5
WORKING AREA: 5FT. X 10FT. UP TO 10FT. X 40FT.
MOTORS (X, Y, Z): BRUSHLESS
DRIVER (X, Y, Z):DIGITAL
POSITIONING SPEED: 1575 IPM (40 M/MIN)
POSITIONING ACCURACY: + - .004 IN (+ - 0,1 MM/M)
REPEATABILITY: +- .002 IN (+ - 0,05 MM/M)
CNC: SOITAAB CNC
MONITOR: 15 IN LCD TOUCH SCREEN
DATA COMMUNICATION: USB - ETHERNET - LAN
CUTTING TECHNOLOGIES: WATER-JET WITH ABRASIVE
CARRIAGE STROKE (Z): 8 IN (OPTIONAL 12 IN) 200 MM (OPTIONAL 300 MM)
