Fiberline PRO
Have one to sell?
ConditionNew
New

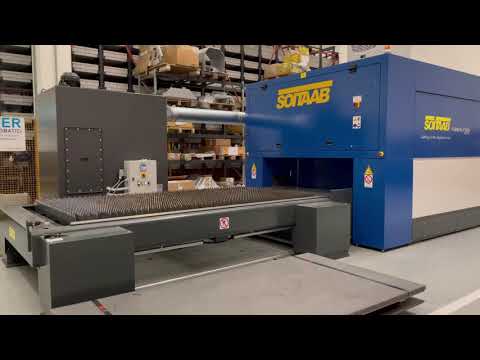

The FIBERLINE PRO optimizes limited spaces by using a telescoping cabin to fit the smallest footprint. The opening of the cabin is motorized and safely controlled through the machine CNC. Thepalletexchangeshuttletable can be integrated at a later date.

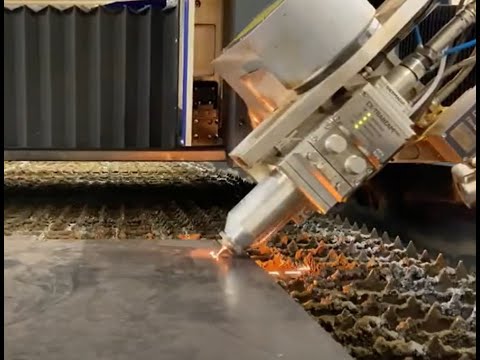

When the cabin is completely closed and the machine is in operation, three internal cameras allow the operator to view the cutting head, the working zone and the inside of the cabin on and external monitor .
Sizes from 5’x10 ’up to 10’x40’
Axis speed: - X and Y up to 155 mt / min
- Max Acceleration/Deceleration 12000 mm/s2
Z speed up to 45 m / s
- Max Acceleration/Deceleration 14700 mm/s2
Rapid speed axes in combined movement 218 m/min
- Pallet change speed up to 30 m/min
Z axis travel: Z 180 mm, for Vertical Carriage
- Z 250 mm, for Bevel and Vertical Carriage
Bevel Angle A + - 45 ° C + - 45 °
