U3-1530 Compact: 3-axes-version with large fixed table
Vertical Machining Centers
Our U3-series is a Vertical Machining Center of high performance with
- X-stroke 1530 mm
- Fixed table and moving column and therefore preferred for
- heavy workpieces
- machining of abrasive material like grafite which is dangerous for guideways
- high number of tools

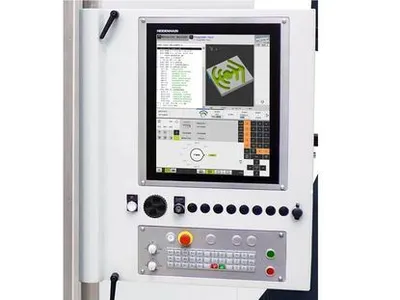

- Most modern high-level controls and drives
usually sold for demanding customers in high level general machining or mould making.
Working area
- X axis 1530 mm
- Y axis 530 mm
- Z axis 465 mm
Table
Table dimensions 1800 x 540 mm
Max. table load 2000 kg
T-slots 18H8
Axes
- Feed / rapid traverse X: 25m/min; Y : Z: 30 m/min
- Number of simultaneously interpolated axes 3 (4)
Spindle
Max. speed 12.000 (SK40)
Performance P max 13,3 kW
Torque M max 100 Nm
Tool magazine
Number of tool stations 24/32/54
Max. tool diameter 76 mm
In case of free adjacent tool stations 130 mm
Max. tool length 300 mm
Max. tool weight 7 kg
General indications
- Dimensions (L x D x H) 3)
- 3650 x 2540 x 2810 mm
Weight 4)
~ 10.500 kg (according to the equipment)
1) Clamping table, 2) Rotary table, 3) See floorplan 4) Machine new weight
