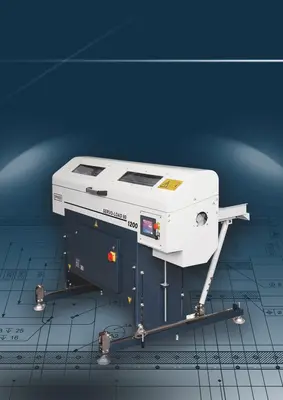

SERVO 80-1200 Bar Loading Magazine for short bars Bar Loading Magazine for short bars

Our high-performance automation peripheral

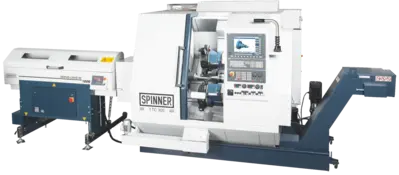

The Servo-Load 80/110 from SPINNER is the ideal and economic solution for automatic loading of bars with a diameter up to 110mm and a length up to 1.500mm. Our high-performance bar loader complements and is especially adapted to all SPINNER single and sub-spindle turning machines.

With a CNC controlled axis for the pusher our bar loader allows the feeding of bar material in short cycle times to a programmed distance without requiring any hard stop in the turret.

Thanks to a transverse sliding mechanism that is fixed to the floor, access to the lathe spindle is always possible when for example a reduction tube must be changed. In addition to that the precision alignment between the bar feeder and the lathe is still maintained after the reduction tube has been changed.

MAIN ADVANTAGES AT A GLANCE
■ 3 sizes are available (see: Technical data)
■ Compact and thus low floor space requirement
■ With servo-drive for a fast loading cycle time
■ Precise bar separation and guidance technology
■ Suitable for round and profile bars
■ Including 3 pushers (6/1 2/1 8mm)
■ Increases the productivity and profitability of your lathe
■ Simple connection to the SPINNER lathe by optimised UNIMAG-interface
