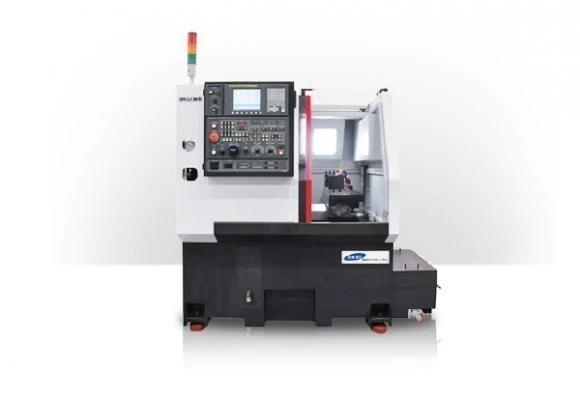

2023 SMEC 1600G-B LM Guide Type Turning Center
Have one to sell?
ConditionNew
1 available
New
8 inch High Efficiency Gang Type Turning Center
Capacity
Chuck size (inch) 8
Max Turing Dia. (mm) 170
Max bar working Dia. (mm) 51
Max Turning Length (mm) 270
Swing Over Bed(mm) 540
Travel
Travels (mm) X: 450 / Y: / Z: 270
Rapid Travels Rate (X/Y/Z) X: 30 / Y: / Z: 36
Spindle
Spindle Speed (RPM) 4500
Spindle Motor (Cont./Max.) (KW) 11 / 15
Draw Tube ID (mm) 52
Turret
Number of Tool 3 (6)
Machine Size
Length (mm) 2475
Height (mm) 1697
Width (mm) 2027
Weight (kgf) 3200
