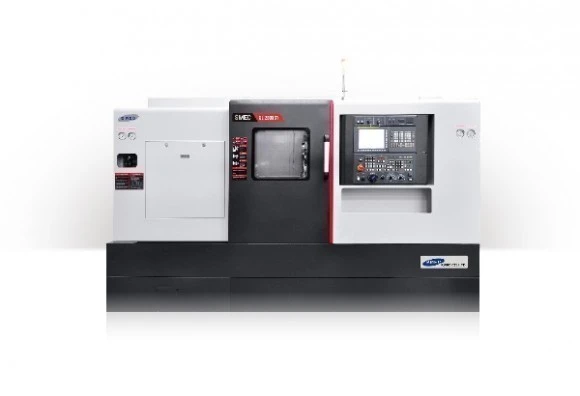

2023 SMEC 2100SY-B LM Guide Type Turning Center
Have one to sell?
ConditionNew
1 available
New
8 inch High Efficiency Y Axis Sub-Spindle Turning Center
Capacity
Chuck size (inch) 8
Max Turing Dia. (mm) 378
Max bar working Dia. (mm) 67
Max Turning Length (mm) 489
Swing Over Bed(mm) 820
Travel
Travels (mm) X: 205 / Y: 110 / Z: 590
Rapid Travels Rate (X/Y/Z) X: 30 / Y: 10 / Z: 36
Spindle
Spindle Speed (RPM) 4500
Spindle Motor (Cont./Max.) (KW) 11 / 18.5
Draw Tube ID (mm) 68
Turret
Number of Tool 12 (24) [BMT45]
Machine Size
Length (mm) 2955
Height (mm) 1730
Width (mm) 1950
Weight (kgf) 4510
