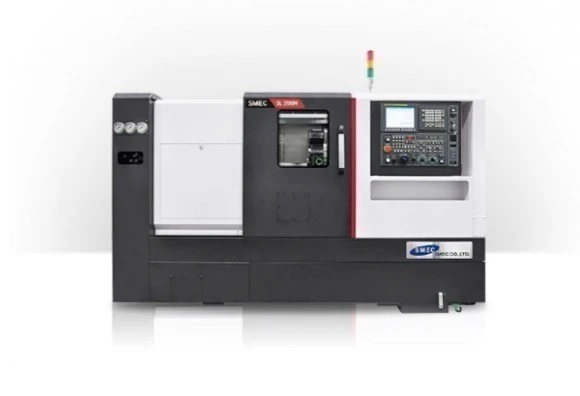

SMEC SL 3000[M]A Box Guide Type Turning Center
Have one to sell?
ConditionNew
New
![SMEC SL 3000[M]A CNC Turning Centers | Bayou Machinery (1)](https://cdn.equipt.com/itw8fki0fwwx9zlhz0ezue7syj1p)
![SMEC SL 3000[M]A CNC Turning Centers | Bayou Machinery](https://cdn.equipt.com/2o0o8e4asbgkbul6xiqww8h7qm60)
Discover the new SMEC SL 3000[M]A Turning Center, offering precision with a 10-inch chuck, 3500 RPM spindle, and a 554 mm turning length. Equipped with a 12-tool turret in a compact form, it's ideal for efficient CNC operations.
Capacity
Chuck size (inch) 10
Max Turing Dia. (mm) 430 [405]
Max bar working Dia. (mm) 76
Max Turning Length (mm) 554 [497]
Swing Over Bed(mm) 650
Travel
Travels (mm) X: 245 / Y: / Z: 600 [540]
Rapid Travels Rate (X/Y/Z) X: 24 / Y: / Z: 30
Spindle
Spindle Speed (RPM) 3500
Spindle Motor (Cont./Max.) (KW) 18.5 / 26
Draw Tube ID (mm) 77
Turret
Number of Tool 12 (24) [BMT65]
Machine Size
Length (mm) 3125
Height (mm) 1610
Width (mm) 1937
Weight (kgf) 5200
(): Option / []: Mill type
