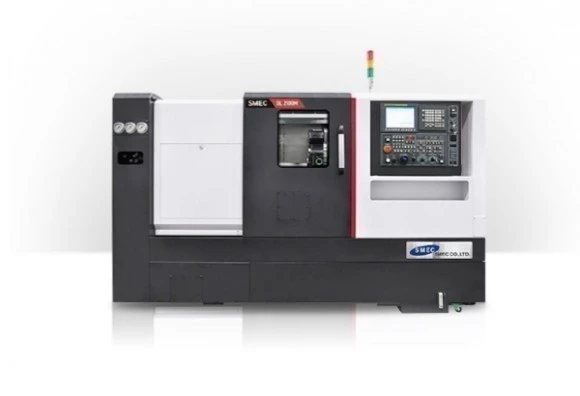

2023 SMEC SL 3000X[M]A Box Guide Type Turning Center
Have one to sell?
ConditionNew
New
![2023 SMEC SL 3000X[M]A CNC Turning Centers | Bayou Machinery (1)](https://cdn.equipt.com/dh6uqmq7ri37sjsuwpvwhhpcx9fz)
![2023 SMEC SL 3000X[M]A CNC Turning Centers | Bayou Machinery](https://cdn.equipt.com/wszc8n5uk25czafqjnlg91xorgx9)
10 inch High Performance Turning Center
Capacity
Chuck size (inch) 10
Max Turing Dia. (mm) 430 [405]
Max bar working Dia. (mm) 76
Max Turning Length (mm) 834 [767]
Swing Over Bed(mm) 650
Travel
Travels (mm) X: 245 / Y: / Z: 880 [820]
Rapid Travels Rate (X/Y/Z) X: 24 / Y: / Z: 30
Spindle
Spindle Speed (RPM) 3500
Spindle Motor (Cont./Max.) (KW) 18.5 / 26
Draw Tube ID (mm) 77
Turret
Number of Tool 12 (24) [BMT65]
Machine Size
Length (mm) 3430
Height (mm) 1610
Width (mm) 1937
Weight (kgf) 5800
(): Option / []: Mill type
