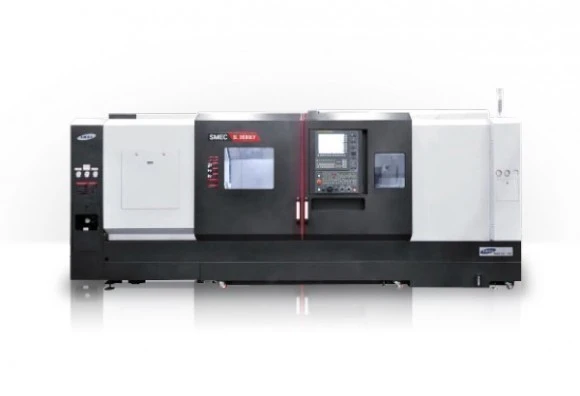

2023 SMEC SL 4000L[M]B Box Guide Type Turning Center
Have one to sell?
ConditionNew
New
![2023 SMEC SL 4000L[M]B CNC Turning Centers | Bayou Machinery (1)](https://cdn.equipt.com/g6gi8pdbqmar4k9ojnx8gz0nrn27)
![2023 SMEC SL 4000L[M]B CNC Turning Centers | Bayou Machinery](https://cdn.equipt.com/r9iq7v13woemss1rfh0g0krjkfsm)
12 inch High Performance Turning Center
Capacity
Chuck size (inch) 15
Max Turing Dia. (mm) 650
Max bar working Dia. (mm) 116.5
Max Turning Length (mm) 3087 [3042]
Swing Over Bed(mm) 770
Travel
Travels (mm) X: 340 / Y: / Z: 3170 [3170]
Rapid Travels Rate (X/Y/Z) X: 16 / Y: / Z: 20
Spindle
Spindle Speed (RPM) 2000
Spindle Motor (Cont./Max.) (KW) 18.5 / 26
Draw Tube ID (mm) 117.5
Turret
Number of Tool 12 [BMT65]
Machine Size
Length (mm) 6360
Height (mm) 2267
Width (mm) 2212
Weight (kgf) 11500
(): Option / []: Mill type
