SMEC SL 4500 A Box Guide Type Turning Center
Have one to sell?
ConditionNew
1 available
New
![SMEC SL 4500[M]A CNC Turning Centers | Bayou Machinery (1)](https://cdn.equipt.com/dv55exvznz9qsfl7ti3eihkqsbwa)

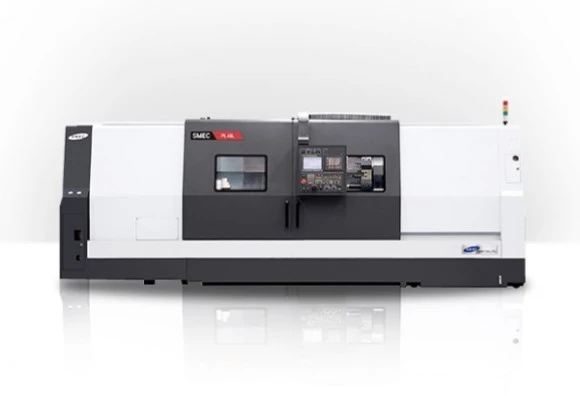

![SMEC SL 4500[M]A CNC Turning Centers | Bayou Machinery](https://cdn.equipt.com/lb36cna5t2pb65f84vkzx24dxlbe)
Explore precision with the new SMEC SL 4500[M]A Box Guide Type Turning Center. Featuring an 18-inch chuck, 690mm max turning diameter, and 1250mm max length, this CNC machine is engineered with a 12-tool turret, offering unparalleled performance for your operations.
Capacity
Chuck size (inch) 18 (15)
Max Turing Dia. (mm) 690 [620]
Max bar working Dia. (mm) 116.5
Max Turning Length (mm) 1250 [1213]
Swing Over Bed(mm) 775
Travel
Travels (mm) X: 350 / Y: / Z: 1325
Rapid Travels Rate (X/Y/Z) X: 24 / Y: / Z: 30
Spindle
Spindle Speed (RPM) 1800 [2000]
Spindle Motor (Cont./Max.) (KW) 30 / 45
Draw Tube ID (mm) 117.5
Turret
Number of Tool 12 [BMT75]
Machine Size
Length (mm) 4649
Height (mm) 2230
Width (mm) 2320
Weight (kgf) 10000
(): Option / []: Mill type
Explore precision with the new SMEC SL 4500[M]A Box Guide Type Turning Center. Featuring an 18-inch chuck, 690mm max turning diameter, and 1250mm max length, this CNC machine is engineered with a 12-tool turret, offering unparalleled performance for your operations.
Imperial
| Swing | 31.9" |
| Machining Length | 80.3" |
| # Axis | 3 |
| Chuck Size | 18" |
| Bar Capacity | 4.6" |
| Power | 40 hp |
| Max RPM | 2,000 RPM |
| Turning Dia | 25.2" |
| Tailstock | Yes |
| Live Tooling | Yes |
| Sub Spindle | No |
| Control | CNC |
| Dimensions | 275 x 91 x 85 in |
| Weight | 37400 lb |
Capacity
Chuck size (inch) 18 (15)
Max Turing Dia. (mm) 690 [620]
Max bar working Dia. (mm) 116.5
Max Turning Length (mm) 1250 [1213]
Swing Over Bed(mm) 775
Travel
Travels (mm) X: 350 / Y: / Z: 1325
Rapid Travels Rate (X/Y/Z) X: 24 / Y: / Z: 30
Spindle
Spindle Speed (RPM) 1800 [2000]
Spindle Motor (Cont./Max.) (KW) 30 / 45
Draw Tube ID (mm) 117.5
Turret
Number of Tool 12 [BMT75]
Machine Size
Length (mm) 4649
Height (mm) 2230
Width (mm) 2320
Weight (kgf) 10000
(): Option / []: Mill type
