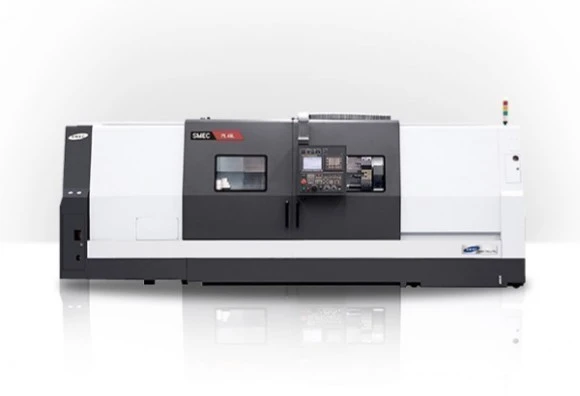

2023 SMEC SL 4500L[M]A Box Guide Type Turning Center
Have one to sell?
ConditionNew
1 available
New
![2023 SMEC SL 4500L[M]A CNC Turning Centers | Bayou Machinery (1)](https://cdn.equipt.com/pkcla31hlfkcbmijyjd0pwumifx8)
![2023 SMEC SL 4500L[M]A CNC Turning Centers | Bayou Machinery](https://cdn.equipt.com/73b6dbel1rymsiohpo3j1tau6y37)
18 (15) inch High Performance Turning Center
Capacity
Chuck size (inch) 18 (15)
Max Turing Dia. (mm) 690 [620]
Max bar working Dia. (mm) 116.5
Max Turning Length (mm) 3055
Swing Over Bed(mm) 775
Travel
Travels (mm) X: 350 / Y: / Z: 3130
Rapid Travels Rate (X/Y/Z) X: 24 / Y: / Z: 30
Spindle
Spindle Speed (RPM) 1800 [2000]
Spindle Motor (Cont./Max.) (KW) 30 / 45
Draw Tube ID (mm) 117.5
Turret
Number of Tool 12 [BMT75]
Machine Size
Length (mm) 6350
Height (mm) 2290
Width (mm) 2329
Weight (kgf) 20000
(): Option / []: Mill type
