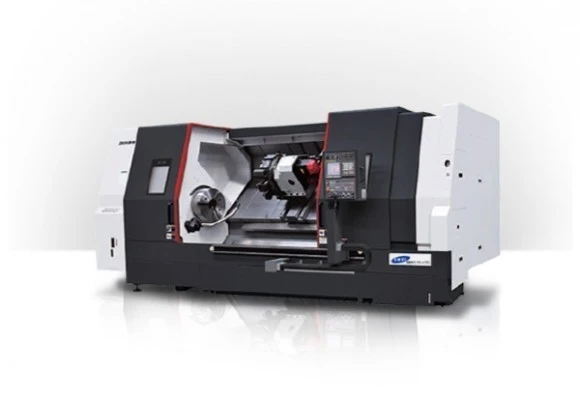

2025 SMEC SL 5500[M]A Box Guide Type Turning Center
Have one to sell?
$290,600.00 USD
$254,550.00 USD
ConditionNew
1 available
New
![2025 SMEC SL 5500[M]A CNC Turning Centers | Bayou Machinery (1)](https://cdn.equipt.com/y0105lc88cq0w7v3yx37jfc0qbf9)
![2025 SMEC SL 5500[M]A CNC Turning Centers | Bayou Machinery](https://cdn.equipt.com/rn3pl3ihg6ofkb5h3svutb8z8wt4)
21 inch High Performance Turning Center
Capacity
Chuck size (inch) 21
Max Turing Dia. (mm) 690
Max bar working Dia. (mm) 165.5
Max Turning Length (mm) 1097
Swing Over Bed(mm) 1079
Travel
Travels (mm) X: 370 / Y: / Z: 1130
Rapid Travels Rate (X/Y/Z) X: 20 / Y: / Z: 20
Spindle
Spindle Speed (RPM) 1500
Spindle Motor (Cont./Max.) (KW) 30 / 45
Draw Tube ID (mm) 166.5
Turret
Number of Tool 12 [BMT75]
Machine Size
Length (mm) 5159
Height (mm) 2173
Width (mm) 2344
Weight (kgf) 15000
(): Option / []: Mill type
