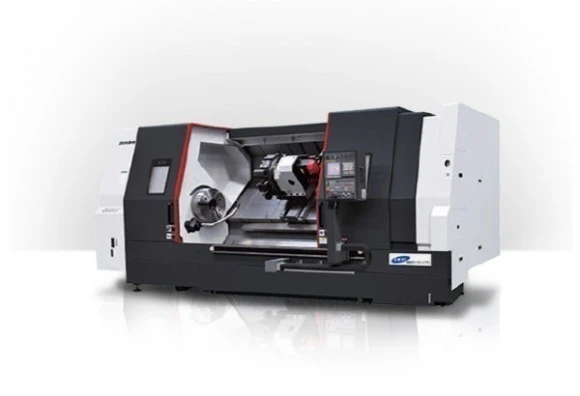

2023 SMEC SL 5500[M]C Box Guide Type Turning Center
Have one to sell?
ConditionNew
1 available
New
![2023 SMEC SL 5500[M]C CNC Turning Centers | Bayou Machinery (1)](https://cdn.equipt.com/uazt4b3os14zjorcvd90to385y74)
![2023 SMEC SL 5500[M]C CNC Turning Centers | Bayou Machinery](https://cdn.equipt.com/l73fpnv9zbuwcf6o8ilin8kw0a3l)
32 inch High Performance Turning Center
Capacity
Chuck size (inch) 32
Max Turing Dia. (mm) 690
Max bar working Dia. (mm) 231
Max Turning Length (mm) 1097
Swing Over Bed(mm) 1079
Travel
Travels (mm) X: 370 / Y: / Z: 1130
Rapid Travels Rate (X/Y/Z) X: 20 / Y: / Z: 20
Spindle
Spindle Speed (RPM) 1000
Spindle Motor (Cont./Max.) (KW) 37 / 55
Draw Tube ID (mm) 232
Turret
Number of Tool 12 [BMT85]
Machine Size
Length (mm) 5159
Height (mm) 2173
Width (mm) 2344
Weight (kgf) 15000
(): Option / []: Mill type
