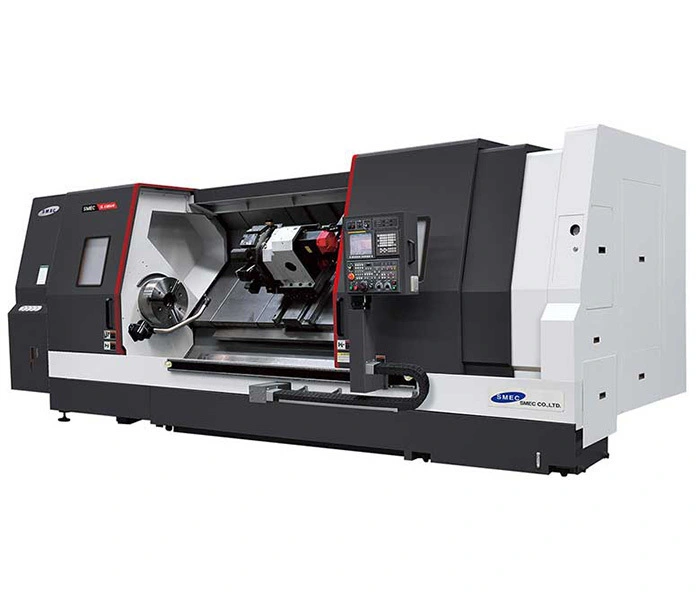

2023 SMEC SL 6500XL[M]A Box Guide Type Turning Center
Have one to sell?
ConditionNew
1 available
New
![2023 SMEC SL 6500XL[M]A CNC Turning Centers | Bayou Machinery (1)](https://cdn.equipt.com/c9xm579tnm0hhejthnyobw8bzsmt)
![2023 SMEC SL 6500XL[M]A CNC Turning Centers | Bayou Machinery](https://cdn.equipt.com/41j2w9er6gauhh0ov1xh54mcv0zp)
21 inch High Performance Turning Center
Capacity
Chuck size (inch) 21
Max Turing Dia. (mm) 900
Max bar working Dia. (mm) 139
Max Turning Length (mm) 5050
Swing Over Bed(mm) 1030
Travel
Travels (mm) X: 470 / Y: / Z: 5100
Rapid Travels Rate (X/Y/Z) X: 12 / Y: / Z: 10
Spindle
Spindle Speed (RPM) 1500
Spindle Motor (Cont./Max.) (KW) 37 / 55
Draw Tube ID (mm) 140
Turret
Number of Tool 12 [BMT75]
Machine Size
Length (mm) 9400
Height (mm) 2860
Width (mm) 2595
Weight (kgf) 26000
(): Option / []: Mill type
