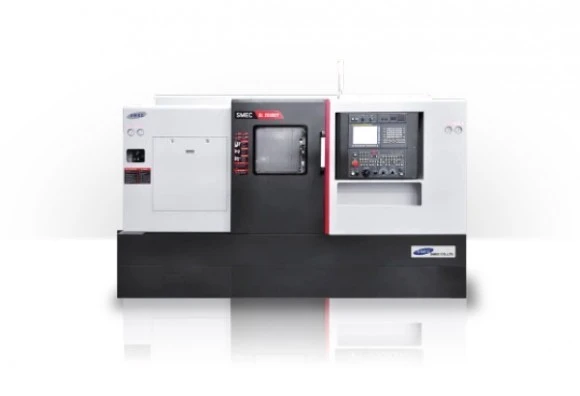

2023 SMEC SL 2000Y-A Box Guide Type Turning Center
Have one to sell?
ConditionNew
1 available
New
6 inch Y Axis Sub-Spindle Turning Center
Capacity
Chuck size (inch) 6
Max Turing Dia. (mm) 395
Max bar working Dia. (mm) 51
Max Turning Length (mm) 490
Swing Over Bed(mm) 650
Travel
Travels (mm) X: 235 / Y: 105 / Z: 580
Rapid Travels Rate (X/Y/Z) X: 24 / Y: 10 / Z: 30
Spindle
Spindle Speed (RPM) 6000
Spindle Motor (Cont./Max.) (KW) 11 / 18.5
Draw Tube ID (mm) 52
Turret
Number of Tool 12 (24) [BMT55]
Machine Size
Length (mm) 2790
Height (mm) 1752
Width (mm) 2085
Weight (kgf) 3850
(): Option / []: Mill type
