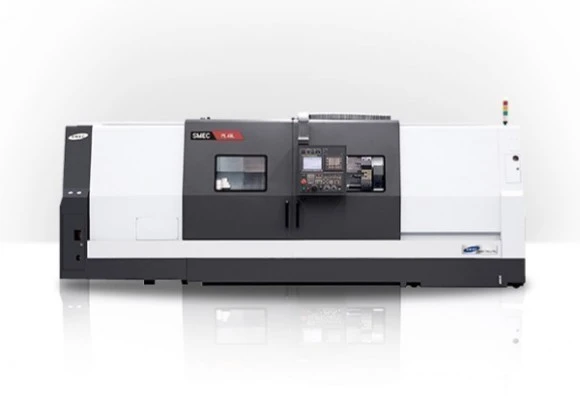

2023 SMEC SL 4500LY-C Box Guide Type Turning Center
Have one to sell?
ConditionNew
New
24 inch Y Axis Sub-Spindle Turning Center
Capacity
Chuck size (inch) 24
Max Turing Dia. (mm) 620
Max bar working Dia. (mm) 165.5
Max Turning Length (mm) 2930
Swing Over Bed(mm) 975
Travel
Travels (mm) X: 350 / Y: 200 / Z: 3060
Rapid Travels Rate (X/Y/Z) X: 20 / Y: 15 / Z: 10
Spindle
Spindle Speed (RPM) 1200
Spindle Motor (Cont./Max.) (KW) 30 / 45
Draw Tube ID (mm) 166.5
Turret
Number of Tool 12 [BMT75]
Machine Size
Length (mm) 6350
Height (mm) 2303
Width (mm) 2659
Weight (kgf) 22000
(): Option / []: Mill type
