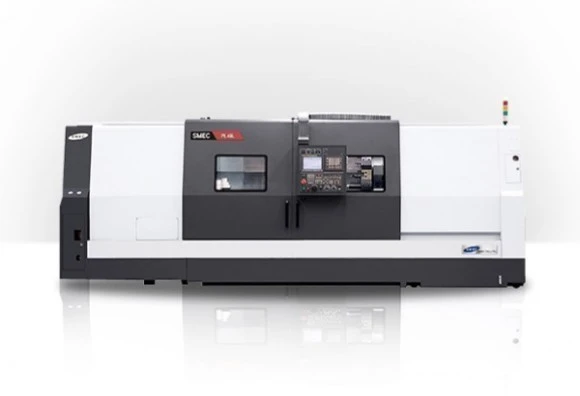

2023 SMEC SL 4500XLY-B Box Guide Type Turning Center
Have one to sell?
ConditionNew
New
21 inch Y Axis Sub-Spindle Turning Center
Capacity
Chuck size (inch) 21
Max Turing Dia. (mm) 620
Max bar working Dia. (mm) 139
Max Turning Length (mm) 5000
Swing Over Bed(mm) 975
Travel
Travels (mm) X: 350 / Y: 200 / Z: 5090
Rapid Travels Rate (X/Y/Z) X: 20 / Y: 15 / Z: 10
Spindle
Spindle Speed (RPM) 1500
Spindle Motor (Cont./Max.) (KW) 30 / 45
Draw Tube ID (mm) 140
Turret
Number of Tool 12 [BMT75]
Machine Size
Length (mm) 8700
Height (mm) 2443
Width (mm) 2683
Weight (kgf) 25000
(): Option / []: Mill type
