SMEC SLV 800[M]-A Vertical Turning Center
Have one to sell?
ConditionNew
1 available
New
![SMEC SLV 800[M]-A CNC Turning Centers | Bayou Machinery (1)](https://cdn.equipt.com/d0q7pv7itps2lxv2igdvg6i94ml1)

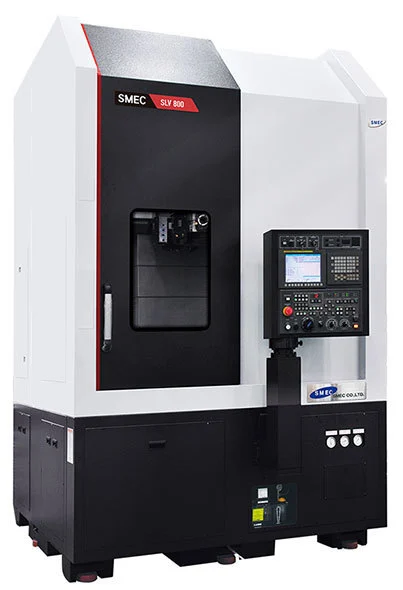

![SMEC SLV 800[M]-A CNC Turning Centers | Bayou Machinery](https://cdn.equipt.com/pz5526dlwl6j8e8nsai1lk10lshl)
18 (15) inch High Performance Vertical Turning Center
Capacity
Chuck size (inch) 18 (15)
Max Turing Dia. (mm) 830
Max bar working Dia. (mm)
Max Turning Length (mm) 800 [775]
Swing Over Bed(mm) 890
Travel
Travels (mm) X: 440 / Y: / Z: 800
Rapid Travels Rate (X/Y/Z) X: 20 / Y: / Z: 20
Spindle
Spindle Speed (RPM) 1800 [2000]
Spindle Motor (Cont./Max.) (KW) 22 / 30
Draw Tube ID (mm)
Turret
Number of Tool 12 [BMT75]
Machine Size
Length (mm) 2050
Height (mm) 2782
Width (mm) 3491
Weight (kgf) 11000
(): Option / []: Mill type
18 (15) inch High Performance Vertical Turning Center
Capacity
Chuck size (inch) 18 (15)
Max Turing Dia. (mm) 830
Max bar working Dia. (mm)
Max Turning Length (mm) 800 [775]
Swing Over Bed(mm) 890
Travel
Travels (mm) X: 440 / Y: / Z: 800
Rapid Travels Rate (X/Y/Z) X: 20 / Y: / Z: 20
Spindle
Spindle Speed (RPM) 1800 [2000]
Spindle Motor (Cont./Max.) (KW) 22 / 30
Draw Tube ID (mm)
Turret
Number of Tool 12 [BMT75]
Machine Size
Length (mm) 2050
Height (mm) 2782
Width (mm) 3491
Weight (kgf) 11000
(): Option / []: Mill type
