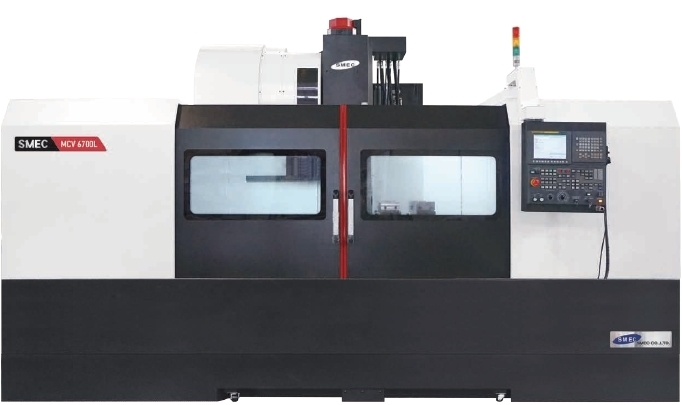

2023 SMEC MCV 6700 LM Guide Type Machining Center

Travel
X-axis travel mm 1600
Y-axis travel mm 670
Z-axis travel mm 520
Spindle to table surface mm 150-670

Table
Table size mm 1700×660
Max. Workpiece weight kgf 1300
Table  surface mm 18Н8 х р125 х 5 ea

Spindle
Spindle speed rpm 12000
Motor (Cont./Max) kW 18,5/15
Spindle nose ASA ВВТ40 [BT40]

Feedrate
X-axis Rapid traverse rate m/min 30
Y-axis Rapid traverse rate m/min 30
Z-axis Rapid traverse rate m/min 30

ATC
Tool storage capacity ea 30
Tool-to-tool time sec 1,2

Machine
Size mm 4105x3400x3000
Weight kg 8500
Electric power supply kVA 35

Controller Fanuc
