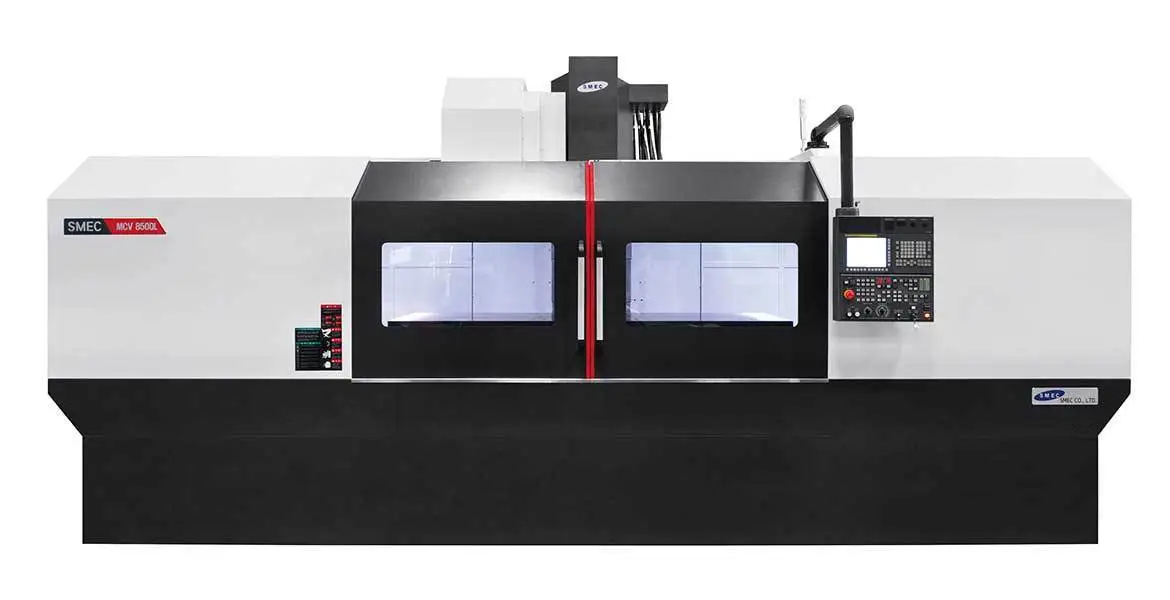

2023 SMEC MCV 8500L LM Guide Type Machining Center

Table
Table Size mm 2,600 x 850
Table surface 18H8 T-slot x p125 x 6ea
Loading capacity kg 2.000

ATC
Tool storage capacity ea 30
Tool Shank BBT40
Tooling changing method Double Arm Swing
Tool Changing Time (T-T) sec 1,3
Tool Selection - Memory random
Max. Tool dia. (adjacent empty) mm 80(125)
Max. Tool Length / Weight mm/kgf 300/8
Pull stud type - MAS P40T-1

Stroke
X-axis Rapid traverse rate m/min 30
Z-axis Rapid traverse rate m/min 24

Storke
Y-axis Rapid traverse rate m/min 30

Travel
Distance from table surface to spindle nose mm 150 ~ 800

Spindle
Spindle speed rpm 12.000
Spindle motor (Cont./Max) kW 11/18.5
Torque (Cont. /Max.) N.m 70.1/117

Travels
Y-axis travel mm 850
X-axis travel mm 2.540
Z-axis travel mm 650

Machine
Size (with Side Chip conveyor) L×W×H mm 6,480(7,272) x 3,791 x 2,965
Size (with Rear Chip conveyor) L×W×H mm -
Machine weight kg 16.000
Coolant tank capacity Liter 715

Electric power supply kVA/V 32/220

Controller FANUC
