SMEC HYST 6700 12K DIRECT Hybrid Type Machining Center

CAPACITY
X axis travel 53.15”
Y axis travel 26.38”

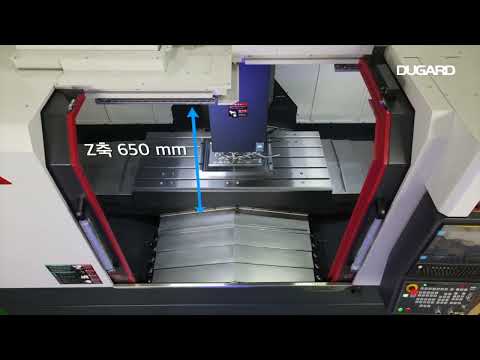

Z axis travel 25.60”
Table size 26.38” x 61.03”
Table loading capacity 2,866 lbs.
Table T-slot spacing x width (5) - 4.93” x 0.71”

SPINDLE
Distance from table top to spindle nose 7.88”~33.47”
Distance from column to spindle center 25.60
Spindle taper CAT40 (Big Plus)
Spindle speed 12,000 rpm
AC spindle motor (Max) 25 hp
Maximum spindle torque (Max) 86.8 ft.-lbs.
Spindle Drive Method Direct Drive

AUTO TOOL CHANGER
Magazine capacity 30
Tool shank CAT40 (Big Plus)
Pull stud type MAS P40T-1
Maximum tool diameter [adjacent empty] 3.15” [4.93”]
Maximum tool length 11.82”
Maximum tool weight 17.64 lbs
Tool selection method Memory Random
Tool changing time (T-T) 1.3(60Hz) sec.

FEED RATE
Rapid traverse (X / Y / Z) 1,417 ipm/ 1,417 ipm/ 1,181 ipm
Cutting feed rate ipm 590.56 ipm

SERVO DRIVE SYSTEM
Feed motor (X / Y / Z) 4 / 4 / 7 (kw)
Ballscrew diameter (X / Y / Z) 1.57” / 1.57” / 1.57”
Axis feed thrust, Continuous (X / Y / Z) 3498 / 3419 x 4862 lbs.
Slide ways (X / Y / Z) LM Guide / LM Guide /Box Guide
Slide way span (X / Y / Z) 18.97“ / 42.12” x 16.92”
Slide way width (X / Y / Z) 1.77” / 1.77” / 4.72”
Position accuracy ±0.0001”
Repeatability ±0.00008”

GENERAL
Floor space (L x W x H) 176.70” x 99.49” x 119.89”
Machine weight 22,046 lbs.
Power required 32 kVA
Voltage 220V ±10% / 3 Phase
CNC system Fanuc 0i-MF PLUS (15" LCD)

SHIPPING DIMENSIONS (L x W x H, Weight)
Crate #1 (Machine) 146” x 124” x 146” (27,338 lbs.)
Crate #2 (Chip Conveyor) TBD ( TBD lbs.)
Crate #3 (Oil Cooler) TBD ( TBD lbs.)
