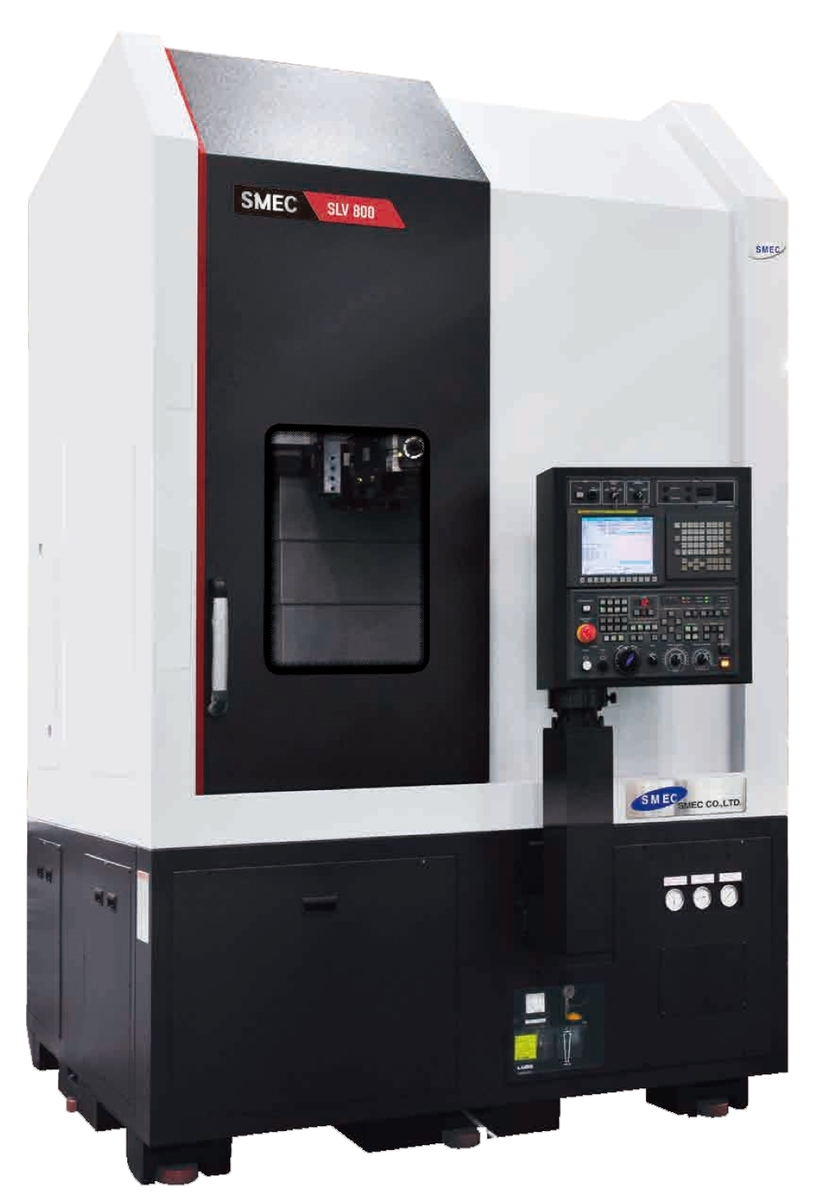

SMEC SLV 800 Vertical Turning Center (RH)

CAPACITY
Swing over the bed 35.04”
Swing over the cross slide 29.13”
Maximum turning diameter 32.67”
Maximum turning length 31.50”

SPINDLE
Chuck Size 18"
Spindle nose A2-11 (ASA)
Main spindle motor (Duty / Cont.) 50 / 40 hp
Spindle speed 2,000 rpm
Spindle bearing diameter (front) 6.29"
Spindle torque (Max) 1,937.57 ft.-lbs.
Speed ranges 2 Speed gear box

SLIDE & CARRIAGE
X Axis travel 16.93”
Z Axis travel 31.50”
Rapid traverse X 787 ipm
Rapid traverse Z 787 ipm
Guide ways (X / Z) Box way
Ballscrew diameter (X / Z) 1.57” / 1.97”
Axis feed thrust, Continuous (X / Z) 2,797 lbs. / 4,831 lbs.
Repeatability (X / Z) ±0.00008” / ±0.00012”

TURRET
Number of tool stations 12 Tools servo (BMT 75)
Turret indexing speed 1 station 0.3 seconds
Curvic coupling 3 Piece hydraulic clamp/Servo index
Coupling diameter / Clamp force 7.87 / 17,776 lbs
Tool size (turning and facing) 1-1/4" – Wedge clamp
Tool size (boring bar max diameter) 2-1/2”
Turret index repeatability ±0.00012”

MACHINE SIZE
Floor space requirements (L x W x H) 81" x 169" x 138”
Machine weight 24,251 lbs.
Power consumption 65 kVA
Voltage 220V±10%, 60 Hz, 3 phase

CNC
CNC model Fanuc 0i-TF PLUS
Display unit 15” TFT LCD Color Monitor

SHIPPING DIMENSIONS (L x W x H, Weight)
Crate #1 (Machine) 150” x 91” x 148”, 26,455 lbs.
Crate #2 (Chip Conveyor) 150” x 30” x 70”, 3,968 lbs.
