SMEC SL 2500BM CNC Turning Center with Live Tooling

CAPACITY
Swing over the bed 25.59”
Swing over the cross slide 18.90”
Maximum turning diameter 15.94”
Maximum milling diameter 17.05”
Maximum turning length 19.57”

MAIN SPINDLE
Chuck size 10”
Spindle nose A2-8 (ASA)
Main spindle motor (Duty / Cont.) 35 / 25 hp
Spindle speed 3,500 rpm
Bore diameter 3.39"
Draw tube ID 3.03"
Spindle torque (Max) 541.4 ft.-lbs.
Spindle drive method Belt
C-axis minimum programmable angle 0.001 deg
C-axis position accuracy 0.0167 deg
C-axis repeatability ±0.0056 deg

BED, SLIDE & CARRIAGE
X axis travel 9.65”
Z axis travel 21.26”
Rapid traverse (X / Z) 945 ipm/1181 ipm
Guide ways (X / Z) Box Way
Bed structure 45deg Slant bed
Ballscrew diameter (X / Z) 1.10” / 1.57”
Axis feed thrust, Maximum (X/Z) 8,136 lbs./ 6,780 lbs.
Repeatability (X/Z) ±0.00008” / ±0.00012”

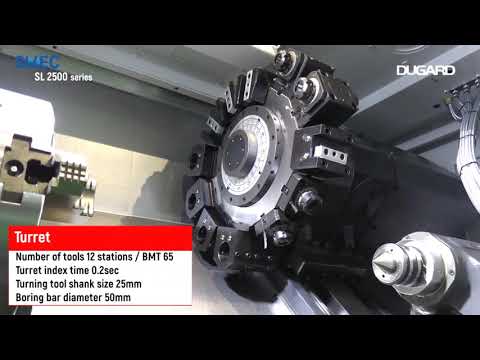

TURRET
Number of tool stations 12 (24) Tools (BMT55)
Turret indexing speed 1 station 0.2 seconds
Curvic coupling 3 Piece hyd clamp/Servo index
Coupling diameter / Clamp force 7.05” / 10,438 lbs.
Tool size (turning and facing) 1” Wedge Clamp
Tool size (boring bar maximum diameter) 2.0”
Rotating tool rpm 5,000 rpm
Rotating tool spindle motor 7.5 hp
Rotating tool spindle torque 25.8 ft-lbs.
Turret index repeatability ±0.00012”

TAILSTOCK
Tailstock center (Taper) MT #4 (Live Center)
Quill diameter 4.33”
Quill travel (by hydraulic) 3.9”
Maximum thrust of quill 2,220 lbs.

COOLANT SYSTEM
Coolant pump motor ( 1.2 hp / 65 psi) 3hp (145 psi) [value package]*
Coolant tank capacity 46.2 gal.
System type Removable / Independent

HYDRAULIC / LUBRICATION
Hydraulic tank capacity 3.7 gal.
Hydraulic oil required (or equivalent) ISO VG32
Way lubrication tank capacity 0.48 gal.
Way lubrication oil required (or =) ISO VG68

MACHINE SIZE
Floor Space Requirements (LxWxH) 167” x 64” x 77”
Machine Weight 11,684 lbs.
Power Consumption 41 kVA
Voltage 220V±10%, 60 Hz, 3 phase

CNC
CNC Model Fanuc 0i-TF PLUS
Display Unit 10.4” TFT LCD Color Monitor
SHIPPING DIMENSIONS (L x W x H, Weight)
Machine and Chip Conveyor 144” x 91” x 87”, 12,972 lbs.
