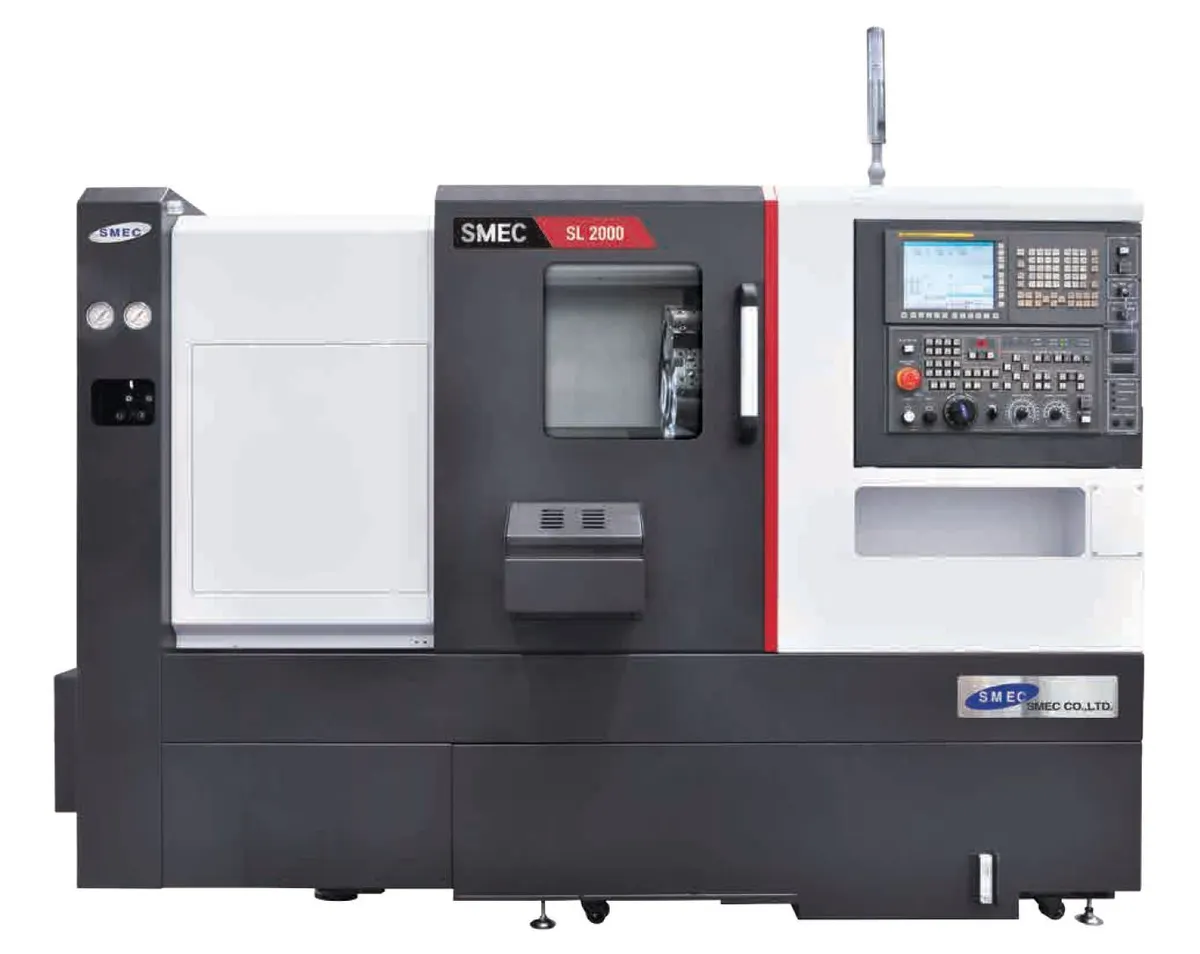

SMEC SL 2000BE CNC Turning Center

CAPACITY
Swing over the bed 22.44”
Swing over the cross slide 18.11”
Maximum turning diameter 14.17”
Maximum turning length 21.26”

MAIN SPINDLE
Chuck size 8”
Spindle nose A2-6 (ASA)
Main spindle motor (Duty / Cont.) 25 / 20 hp
Spindle speed 4,500 rpm
Bore diameter 2.99”
Draw tube ID 2.67”
Spindle torque (Max) 302.9 ft.-lbs.
Spindle drive method Belt

BED, SLIDE & CARRIAGE
X axis travel 8.26”
Z axis travel 22.04”
Rapid traverse (X / Z) 944 ipm/1181 ipm
Guide ways (X / Z) Box Way
Bed structure 45deg Slant bed
Ballscrew diameter (X / Z) 1.10” / 1.57”
Axis feed thrust, Maximum (X/Z) 3,432 lbs./ 5,720 lbs.
Repeatability (X/Z) ±0.00008” / ±0.00012”

TURRET
Number of tool stations 12 Tools (12) OD (12) ID
Turret indexing speed 1 station 0.15 seconds
Curvic coupling 3 Piece hyd clamp/Servo index
Coupling diameter / Clamp force 6.57” / 7,833 lbs.
Tool size (turning and facing) 1”
Tool size (boring bar maximum diameter) 2”
Turret index repeatability ±0.00012”

TAILSTOCK
Tailstock center (Taper) MT #4 (Live Center)
Quill diameter 2.95”
Quill travel (by hydraulic) 3.93”
Maximum thrust of quill 1135 lbs.

COOLANT SYSTEM
Coolant pump motor ( 1.2 hp / 65 psi) 1.2hp (65 psi)
Coolant tank capacity 53 gal.
System type Removable / Independent

HYDRAULIC / LUBRICATION
Hydraulic tank capacity 3.7 gal.
Hydraulic oil required (or equivalent) ISO VG32
Way lubrication tank capacity 0.48 gal.
Way lubrication oil required (or =) ISO VG68

MACHINE SIZE
Floor Space Requirements (LxWxH) 149” x 61” x 76”
Machine Weight 8,600 lbs.
Power Consumption 31 kVA
Voltage 220V±10%, 60 Hz, 3 phase

CNC
CNC Model Fanuc 0i-TF PLUS
Display Unit 10.4” TFT LCD Color Monitor
SHIPPING DIMENSIONS (L x W x H, Weight)
Machine and Chip Conveyor 146” x 91” x 85”, 10,362 lbs.
