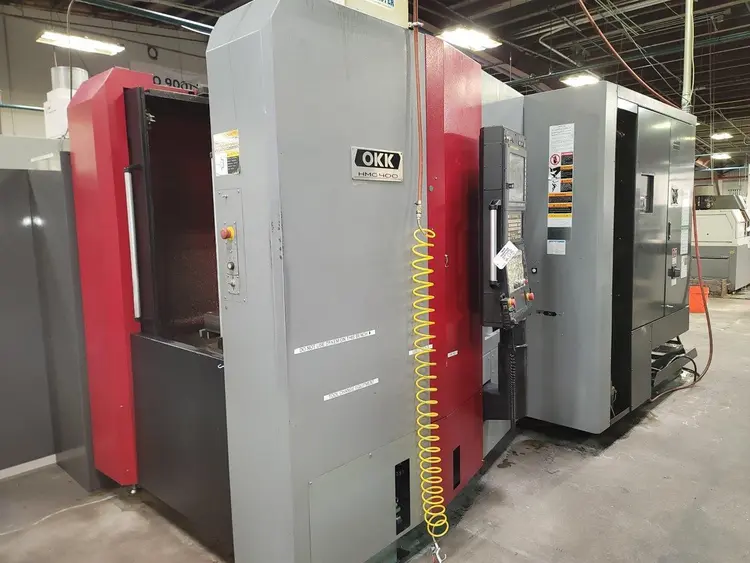

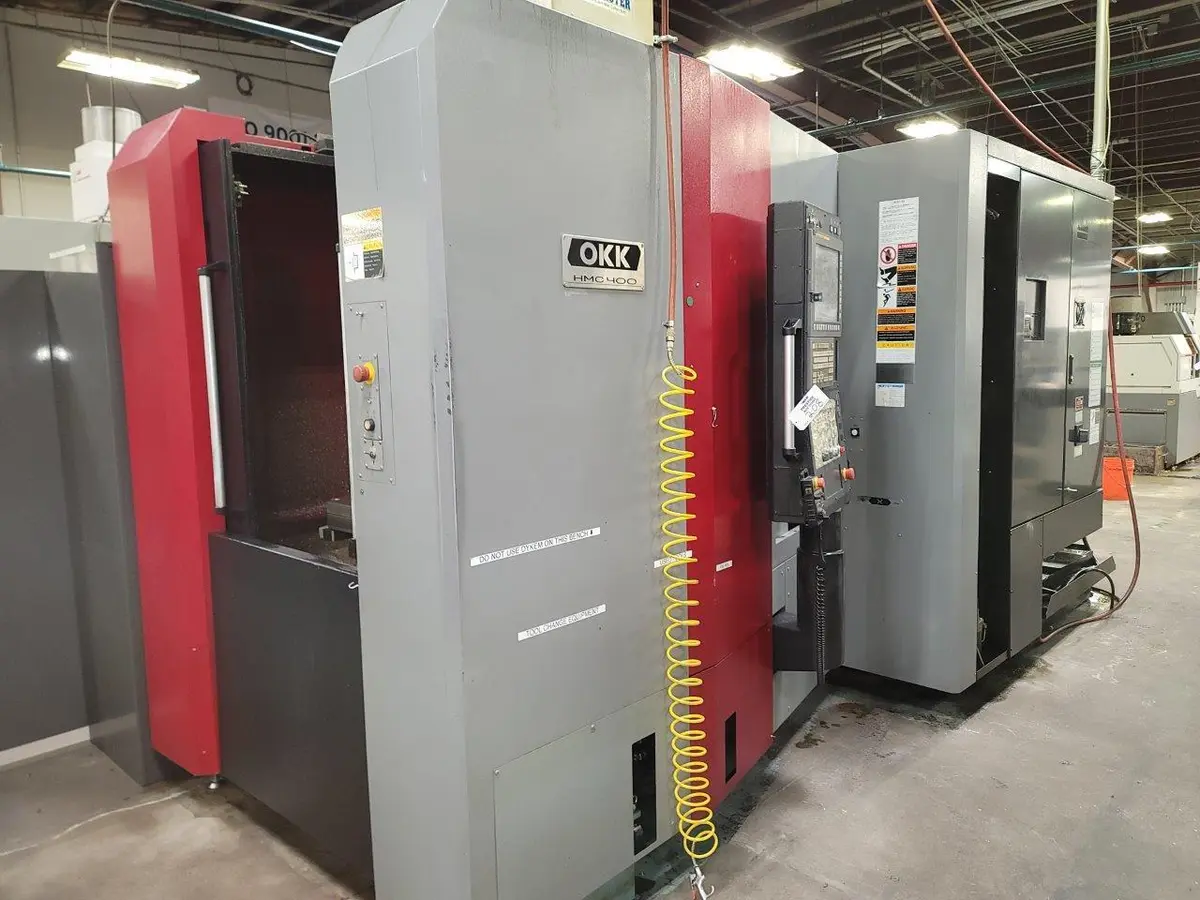

Used 2015 OKK HMC400 | Horizontal Machining Centers
Have one to sell?
ConditionUsed
1 available
X-AXIS TRAVEL 22.05"
Y-AXIS TRAVEL 22.05"
Z-AXIS TRAVEL 27.17"
TABLE TOP TO SPINDLE CENTERLINE 3.15-25.20"
TABLE CENTER TO SPINDLE NOSE 1.97-29.13"
NUMBER OF PALLETS 2
PALLET SIZE 15.7" X 15.7"
SPINDLE TAPER CAT 40
SPINDLE SPEEDS 100-15,000 RPM
SPINDLE MOTOR 50 HP
SPINDLE TORQUE 184 FT/LBS
TOOL CHANGER 60 ATC
RAPID TRAVERSE RATE 2480 IPM
FANUC 31I-B CNC CONTROL
FULL B-AXIS CONTOURING
60-STATION AUTOMATIC TOOL CHANGER
15,000 RPM
THRU-SPINDLE COOLANT
Imperial
| X | 22.05" |
| Y | 22.05" |
| Z | 27.17" |
| Power | 50 hp |
| RPM | 15,000 RPM |
| # ATC | 60 |
| Taper | CAT-40 |
| Pallet-W | 15.75" |
| Pallet-L | 15.75" |
| # Axis | 4 |
| Control | CNC (Fanuc 31i-B) |
X-AXIS TRAVEL 22.05"
Y-AXIS TRAVEL 22.05"
Z-AXIS TRAVEL 27.17"
TABLE TOP TO SPINDLE CENTERLINE 3.15-25.20"
TABLE CENTER TO SPINDLE NOSE 1.97-29.13"
NUMBER OF PALLETS 2
PALLET SIZE 15.7" X 15.7"
SPINDLE TAPER CAT 40
SPINDLE SPEEDS 100-15,000 RPM
SPINDLE MOTOR 50 HP
SPINDLE TORQUE 184 FT/LBS
TOOL CHANGER 60 ATC
RAPID TRAVERSE RATE 2480 IPM
FANUC 31I-B CNC CONTROL
FULL B-AXIS CONTOURING
60-STATION AUTOMATIC TOOL CHANGER
15,000 RPM
THRU-SPINDLE COOLANT
