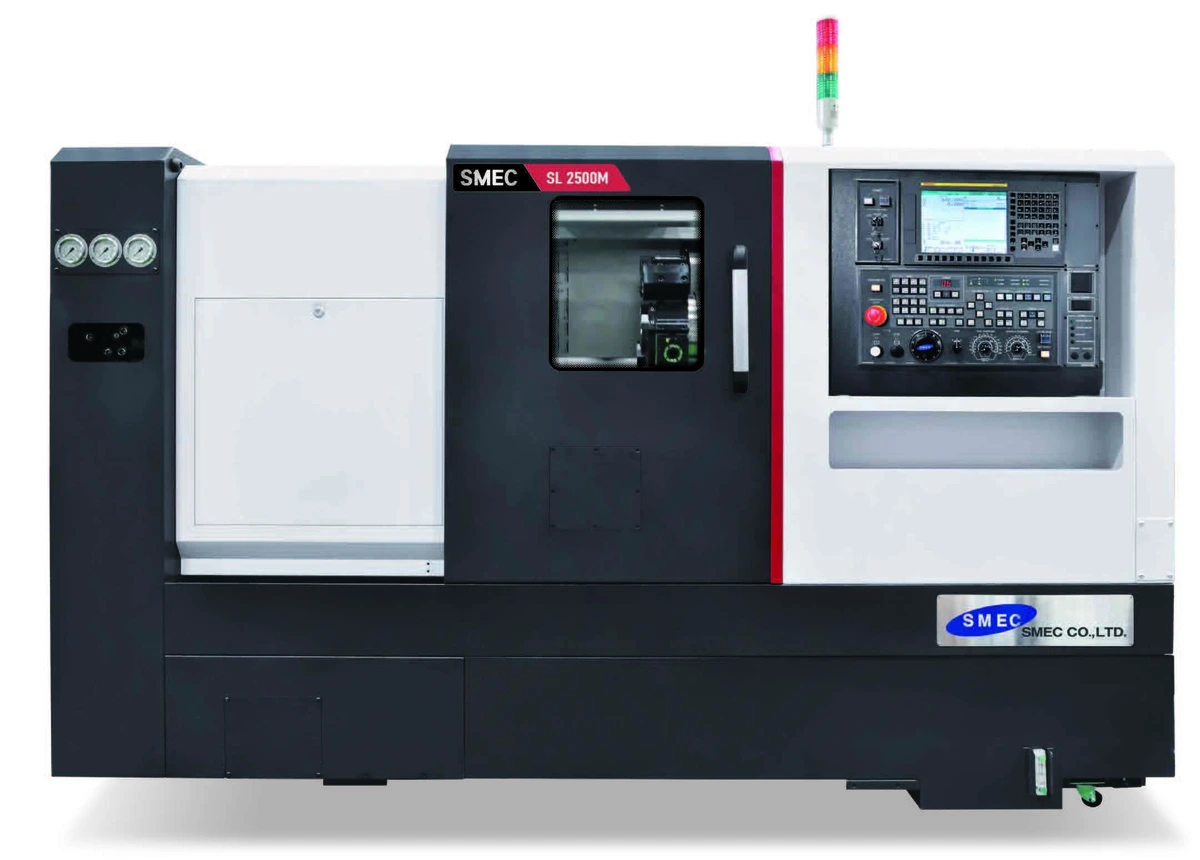

2024 SMEC SL 2500E CNC Turning Center

CAPACITY
Swing over the bed 25.59”
Swing over the cross slide 18.90”
Maximum turning diameter 16.93”
Maximum turning length 21.81”

MAIN SPINDLE
Chuck size 10”
Spindle nose A2-8 (ASA)
Main spindle motor (Max / Duty / Cont.) 35 / 30 / 25 hp
Spindle speed 3,500 rpm with 10” chuck
Bore diameter 3.39”
Draw tube ID 3.03”
Spindle torque (Max) 541.4 ft.-lbs.
Spindle drive method Belt

BED, SLIDE & CARRIAGE
X axis travel 9.65”
Z axis travel 23.62”
Rapid traverse (X / Z) 945 ipm / 1181 ipm
Guide ways (X / Z) Box Way
Bed structure 45 deg Slant bed
Ballscrew diameter (X / Z) 1.10” / 1.57”
Axis feed thrust, Max (X / Z) 8,136 lbs. / 6,780 lbs.
Repeatability (X / Z) ±0.00008” / ±0.00012”

TURRET
Number of tool stations 12 Tools (12) OD (12) ID
Turret indexing speed (1 station) 0.15 Seconds
Curvic coupling 3 Piece hyd clamp / Servo index
Coupling diameter / Clamp force 7.05” / 10,438 lbs.
Tool size (turning and facing) 1” – wedge clamp
Tool size (boring bar maximum diameter) 2”
Turret index repeatability ±0.00012”

TAILSTOCK
Tailstock center (taper) MT #4 (Built In)
Quill diameter 4.33”
Quill travel (by hydraulic) 3.94”
Maximum thrust of quill 2,220 lbs.

COOLANT SYSTEM
Coolant pump motor 1.2 hp (65 psi)
Coolant tank capacity 46.2 gal.
System type Removable / Independent

HYDRAULIC / LUBRICATION
Hydraulic tank capacity 3.7 gal.
Hydraulic oil required (or equivalent) ISO VG32
Way lubrication tank capacity 0.48 gal.
Way lubrication oil required (or equivalent) ISO VG68

MACHINE SIZE
Floor Space Requirements (L x W) 167" x 64”
Machine Weight 11,244 lbs.
Power Consumption 41 kVA
Voltage 220V±10%, 60 Hz, 3 phase

CNC
CNC Model Fanuc 0i-TF PLUS
Display Unit 10.4” TFT LCD Color Monitor

SHIPPING DIMENSIONS (L x W x H, Weight)
Crate #1 (Machine) 166” x 91” x 87”, 12,787 lbs.
