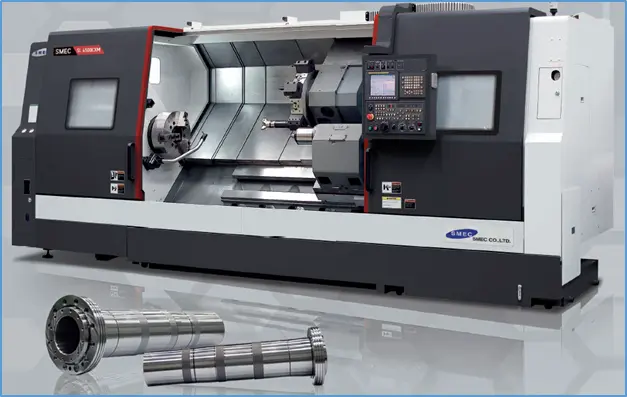

SMEC SL 4500ALM - 15" Chuck with Live Tooling, 120" Cutting Length

CAPACITY
Swing over the bed 30.52"
Swing over cross slide 24.81"
Maximum turning diameter 24.41”
Maximum turning length 120.28”

MAIN SPINDLE
Chuck size 18” or 15"
Spindle nose A2-11
Main spindle motor (Max/Cont) 50 / 40 hp
Spindle speed 1,800rpm
Bore diameter 5.20”
Draw tube ID 4.63”
Spindle torque (Max.) 1,938.32 ft.-lbs.
Spindle drive method 2 Speed gear box
C axis minimum programmable angle 0.001 deg
C axis position accuracy 0.0167 deg
C axis repeatability ±0.0056 deg

BED, SLIDE & CARRIAGE
X axis travel 13.78”
Z axis travel 123.23”
Rapid traverse (X/Z) 787 ipm / 394 ipm
Guide ways (X/Y/Z) Box Way
Bed Structure 45 deg slant bed
Ballscrew diameter (X/Z) 1.57” / 1.97”
Axis feed thrust, Continuous (X/Z) 10,551 lbs / 13,771 lbs
Repeatability (X / Z) ±0.00008” / ±0.00012”

TURRET
Number of tool stations 12 Tools (BMT75)
Turret indexing speed (1 station) 0.2 Seconds
Curvic coupling 3 Piece hyd clamp/Servo index
Coupling diameter / Clamp force 9.96” / 18,524 lbs.
Tool size (turning and facing) 1-1/4” Wedge clamp
Tool size (boring bar max dia) 2-1/2”
Rotating tool rpm 4,000 rpm
Rotating tool spindle motor 10 hp
Rotating tool spindle torque 35.5 ft-lbs.
Turret index repeatability ±0.00020”

TAILSTOCK
Tailstock center (taper) MT #5 (Built In) Dead Center
Quill diameter 6.30”
Quill travel (by hydraulic) 5.91”
Maximum thrust of quill 7,062 lbs.

COOLANT SYSTEM
Coolant pump motor (Max 290 psi) 3 hp (145 psi)
Coolant tank capacity 158 gal.
System type Removable / Independent

HYDRAULIC / LUBRICATION
Hydraulic tank capacity 6.34 gal.
Hydraulic oil required (or equal) ISO VG32
Way lubrication tank capacity 0.79 gal.
Way lubrication oil required (or =) ISO VG68

MACHINE SIZE
Floor Space Requirements (LxWxH) 288” x 91” x 92”
Machine Weight 39,940 lbs.
Power Consumption 60 kVA
Voltage 220V±10%, 60 Hz, 3 phase

CNC
CNC Model Fanuc 0i-TF PLUS
Display unit 15” TFT LCD Color Monitor
