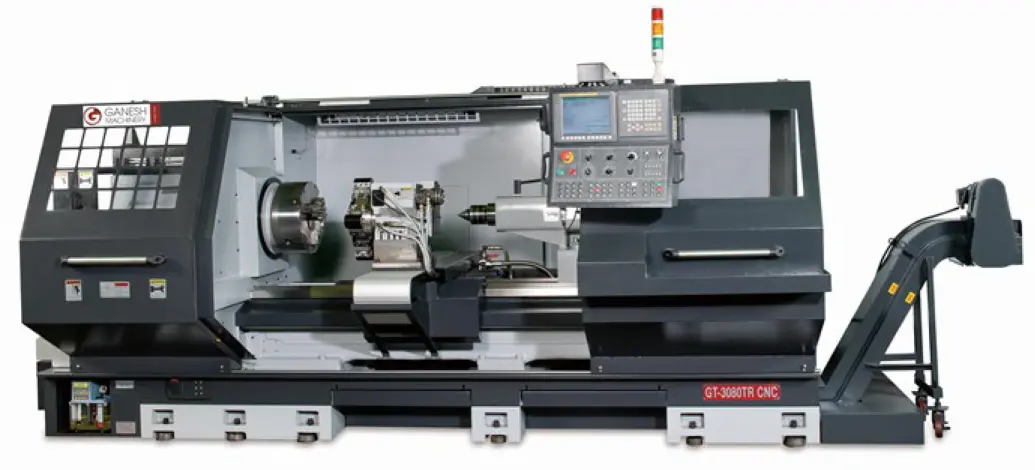

Ganesh GT-3080TR CNC Lathe with 10" Spindle Bore (GTW-3080)
Have one to sell?
ConditionUsed
1 available
- 8-Position Hydraulic Vertical Turret with any combination of ID / OD tools (4-ID holders supplied)
- 10” Spindle Bore, Front & Rear A2-15 Spindle Nose, 18-600 RPM (Low Range: 18-186, High Range: 60-600)
- Hydraulic Tailstock, with hydraulic quill advance, retract, & jog pushbuttons
- 25" 3-Jaw Manual Chuck
- Coolant System
Imperial
| Swing | 30" |
| Machining Length | 78" |
| Chuck Size | 25" |
| Bar Capacity | 10" |
| Power | 30 hp |
| Max RPM | 600 RPM |
| Turning Dia | 22" |
| Tailstock | Yes |
| Control | CNC (Fanuc 0i-TF) |
| Dimensions | 222 x 85 x 80 |
| Weight | 13230 |
- 8-Position Hydraulic Vertical Turret with any combination of ID / OD tools (4-ID holders supplied)
- 10” Spindle Bore, Front & Rear A2-15 Spindle Nose, 18-600 RPM (Low Range: 18-186, High Range: 60-600)
- Hydraulic Tailstock, with hydraulic quill advance, retract, & jog pushbuttons
- 25" 3-Jaw Manual Chuck
- Coolant System
