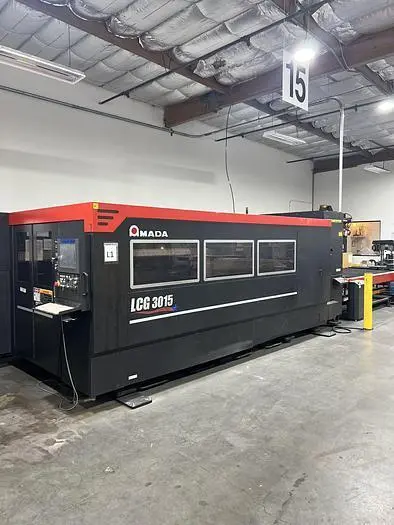

Used 2014 AMADA LCG 3015 | Laser Cutters

Have one to sell?
337-769-3517
john@bayoumachinery.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Laser Cutters
Manufacturer:
AMADA
Model:
LCG 3015
Year:
2014
Stock #:
1826
Status:
For Sale
Length10'3,048 mm
Width5'1,524 mm
Height6'1,828.8 mm
Nominal sheet size X120"3,048 mm
Nominal sheet size Y60"1,524 mm
Cutting area X121"3,073.4 mm
Cutting area Y61"1,549.4 mm
Cutting area Z3.93"99.822 mm
Max. simultaneous positioning speed4,724"119,990 mm
Max. workpiece weight2000 lb
Table change over time35 sec.35 s
Power3.5 kW3.5 kw
Max sheet thicknesses (Steel)34"863.6 mm
Max sheet thicknesses (Stainless Steel)38"965.2 mm
Max sheet thicknesses (Aluminum)516"13,106 mm
ControlCNCCNC

3 PALLET SHUTTLE TABLE
HELICAL RACK AND PINION DRIVE SYSTEM
AMADA/FANUC 3500i - C RESONATOR
RAPID TRAVERSE X,Y,Z = 4,724
REPEATABILITY: 0.0002"
Z-AXIS HIGH SPEED CAPACITIVE SENSING
AMNC-PC-OS WINDOWS EMBEDDED
AUTOMATIC SELECT GAS CONTROL
FARR GOLD SERIES DUST COLLECTOR
ORION CO2 CHILLER
