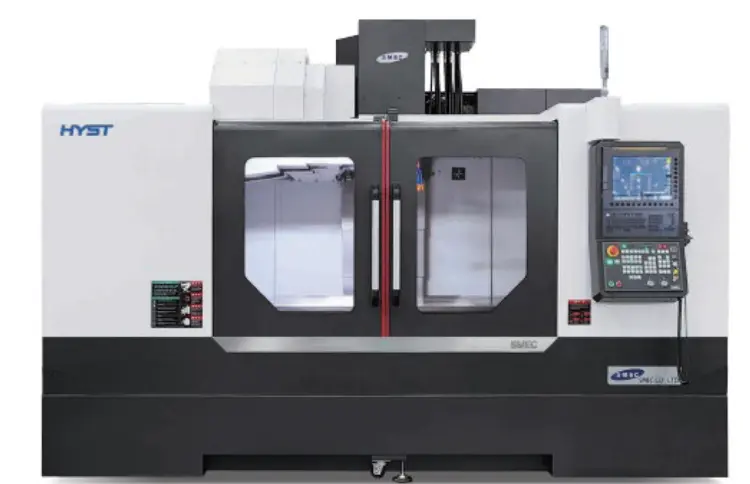

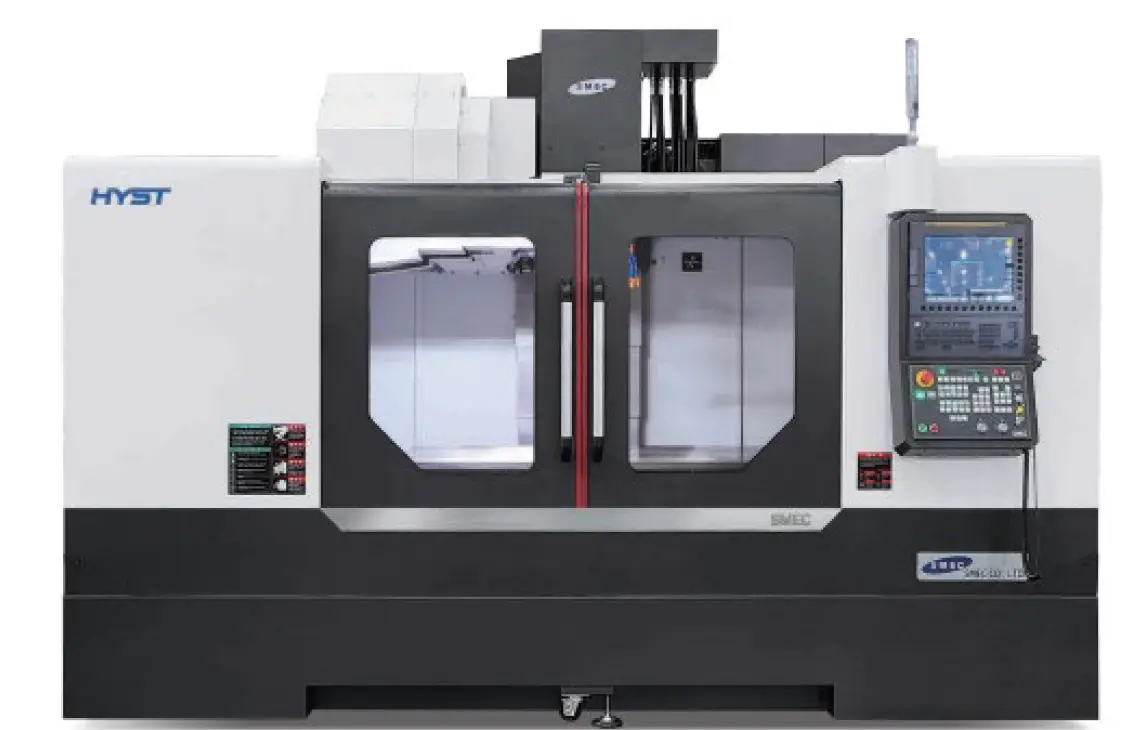

SMEC HYST 5700 (CAT 40) 12K RPM Vertical Machining Center

CAPACITY
X axis travel 41.33”
Y axis travel 22.44”
Z axis travel 20.47”
Table size 22.44” x 51.18”
Table loading capacity 2,204 lbs.
Table T-slot spacing x width (4) - 4.93” x 0.71”

SPINDLE
Distance from tabletop to spindle nose 5.90” ~26.37”
Distance from column to spindle center 24.01”
Spindle taper CAT40 (Big Plus)
Spindle speed 12,000 rpm
AC spindle motor (Max) 29.78 hp
Maximum spindle torque (S3) 87.03 ft.-lbs.
Spindle Drive Method Direct

AUTO TOOL CHANGER
Magazine capacity 30
Tool shank AT40
Pull stud type MAS P40T-1
Maximum tool diameter [adjacent empty] 3.15” [4.93”]
Maximum tool length 11.82”
Maximum tool weight 17.64 lbs.
Tool selection method Memory Random
Tool changing time (T-T) 1.3(60Hz) sec.

FEED RATE
Rapid traverse (X / Y / Z) 1,417ipm/1,417 ipm/1,181 ipm
Cutting feed rate ipm 590.56 ipm

SERVO DRIVE SYSTEM
Feed motor (X / Y / Z) 4 / 4 / 7 (kw)
Ballscrew diameter (X / Y / Z) 1.57” / 1.57” / 1.57”
Axis feed thrust, Cont. (X / Y / Z) 3498 / 3419 x 4862 lbs.
Slide ways (X / Y / Z) LM / LM /Box
Slide way span (X / Y / Z) 15.15“ / 34.44” x 19.68”
Slide way width (X / Y / Z) 1.77” / 1.77” / 4.72”
Position accuracy ±0.0001”
Repeatability ±0.00008”

GENERAL
Floor space (L) x W x H) 164.60” x 94” x 110”
Machine weight 14,740 lbs.
Power required 32 kVA
Voltage 220V ± 10% / 3 Phase
CNC system Fanuc 0i-MF PLUS

SHIPPING DIMENSIONS (L x W x H, Weight)
Crate #1 (Machine) 126” x 94” x 110” (15,771 lbs)
Crate #2 (Chip Conveyor) 181” x 91” x 77” ( 1,984 lbs.)
