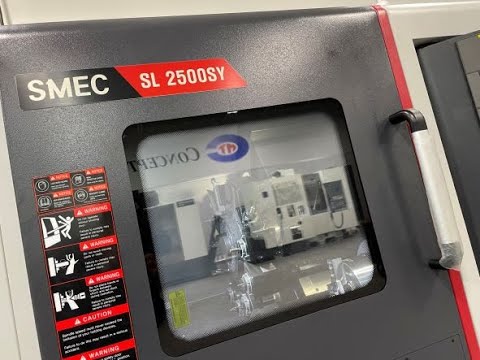

New 2025 SMEC SL 2500BSY | Precise Universal Lathes

CAPACITY
Swing over the bed 25.59”
Swing over the cross slide 21.26”
Maximum turning diameter 14.17”
Maximum turning length 18.75”

MAIN SPINDLE
Chuck size 10”
Spindle nose A2-8 (ASA)
Main spindle motor (Max/Duty/Cont) 35 / 30 / 25 hp
Spindle speed 3,500 rpm
Bore diameter 3.39”
Draw tube ID 3.03”
Spindle torque (Max) 542.0 ft-lbs
Spindle drive method Belt
C axis minimum programmable angle 0.001 deg
C axis position accuracy 0.0167 deg
C-axis repeatability ±0.0056 deg

SUB SPINDLE
Chuck size 8”
Spindle nose A2-6 (ASA)
Spindle motor 20 / 15 hp
Spindle speed 4,000 rpm
Bore diameter 2.40”
Draw tube ID 2.05”
Spindle torque 153.4 ft-lbs
C axis minimum programmable angle 0.001 deg
C axis position accuracy 0.0167 deg
C-axis repeatability ±0.0056 deg

BED, SLIDE & CARRIAGE
X / Y / Z / ZB axis travel 9.25”/3.94”/22.83”/22.24”
Rapid traverse (X / Y / Z / ZB) 709 ipm/394 ipm/945 ipm/945 ipm
Guide ways (X / Y / Z / ZB) Box Way
Bed structure 30-deg Slant bed
Ballscrew diameter (X / Y / Z / ZB) 1.42” / 1.42” / 1.57” / 1.57”
Axis feed thrust, Max (X/Y/Z/ZB) 4,449lbs/8,898lbs/6,780lbs/8,136lbs
Repeatability (X / Y-Z-ZB) ±0.00008” / ±0.00012”

TURRET
Number of tool stations 12 (24) Tools (BMT65)
Turret indexing speed (1 station) 0.2 seconds
Curvic coupling 3 Piece hydraulic clamp / Servo index
Coupling diameter / Clamp force 7.05” / 10,431 lbs.
Tool size (turning and facing) 1” – Wedge clamp
Tool size (boring bar max diameter) 2”
Rotating tool rpm 5,000 rpm
Rotating tool spindle motor 7.5 hp
Rotating tool spindle torque 27.7 ft-lbs.
Turret index repeatability ±0.00012”

COOLANT SYSTEM
Coolant pump motor 1.2 hp (65 psi)
Coolant tank capacity 45.7 gal.
System type Removable / Independent

HYDRAULIC / LUBRICATION
Hydraulic tank capacity 3.7 gal.
Hydraulic oil required (or =) ISO VG32
Way lubrication tank capacity 0.79 gal
Way lubrication oil required (or =) ISO VG68

MACHINE SIZE
Floor Space Requirements (L x W) 183.7” x 76.0”
Machine Weight 13,228 lbs.
Power Consumption 45 kVA 66 kVA
Voltage 220V±10%
60 Hz, 3 phase

CNC
CNC Model Fanuc 0i-TF PLUS
Display Unit 15” TFT LCD

SL 2500BSY SHIPPING DIMENSIONS (L x W x H, Weight)
Crate #1 (Machine) 201” x 91” x 94”, 16,535 lbs.
