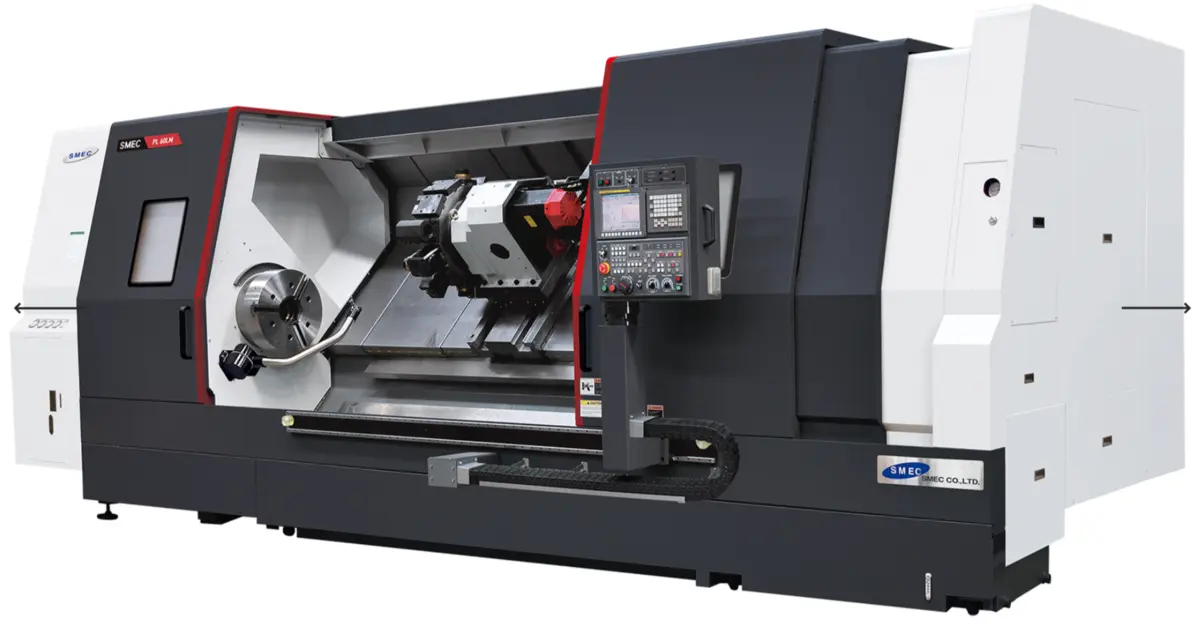

New SMEC SL 6500BLM | Precise Universal Lathes

CAPACITY
Swing over the bed 40.55”
Swing over the cross slide 31.49”
Maximum turning diameter 35.43”
Maximum milling diameter 33.18”
Maximum turning length 3200 125.98”

MAIN SPINDLE
Chuck size 24”
Spindle nose A2-15 (ASA)
Main spindle motor (Cont./30min/Max) 50/ 60/ 74hp
Spindle speed 1,200 rpm (24” chuck)
Bore diameter 5.98”
Draw tube ID 5.51”
Spindle torque (Max) 4,955 ft.-lbs.
Spindle drive method 3 Speed gear
C axis minimum programmable angle 0.001 deg
C axis position accuracy 0.0167 deg
C-axis repeatability ±0.0056 deg

BED, SLIDE & CARRIAGE
X axis travel 18.50”
Z axis travel 3200 128.73”
Rapid traverse (X) 472 ipm
Rapid traverse (Z) 393 ipm
Guide ways (X / Z) Box Way
Bed structure 45 deg Slant bed
Ballscrew diameter (X / Z) 1.97” / 2.48”
Axis feed thrust, Max. (X / Z) 10,550 lbs / 13,771 lbs
Repeatability (X / Z) ±0.00008” / ±0.00012”

TURRET
Number of tool stations 12 Tools (BMT85)
Turret indexing speed (1 station) 0.25 seconds
Curvic coupling 3 Piece hyd clamp / Servo index
Coupling diameter / Clamp force 12.64”/ 40,156 lbs.
Tool size (turning and facing) 1.25” Wedge clamp
Tool size (boring bar maximum diameter) 3”
Rotating tool rpm 3,000 rpm
Rotating tool spindle motor 14.7 hp
Rotating tool spindle torque 103.3 ft-lbs.
Turret index repeatability ±0.00012” vs. ±0.00039”

TAILSTOCK
Tailstock center (taper) MT #6 (Built-in)
Quill diameter 7.09”
Quill travel (by hydraulic) 5.91”
Maximum thrust of quill 9,744 lbs. vs. 14,397

COOLANT SYSTEM
Coolant pump motor(1.2 hp / 65 psi) 3 hp (145 psi)
Coolant tank capacity 158 gal.
System type Removable / Independent

HYDRAULIC / LUBRICATION
Hydraulic tank capacity 17.44 gal.
Hydraulic oil required (or equivalent) ISO VG32
Way lubrication tank capacity 0.79 gal.
Way lubrication oil required (or =) ISO VG68

MACHINE SIZE
Floor Space Req. (L x W x H) 332” x 109” x 103”
Machine Weight 48,510 lbs.
Power Consumption 69 kVA
Voltage 220V±10%, 60 Hz, 3 phase

CNC
CNC Model Fanuc 0i-TF PLUS
Display Unit 15” TFT LCD Color Monitor

SL6500BLM (3200) SHIPPING DIMENSIONS (L x W x H, Weight)
Crate #1 (Machine) 303” x 95” x 117”, 49,163 lbs.
Crate #2 (Chip Conveyor) 270” x 91” x 75”, 3,527 lbs.
