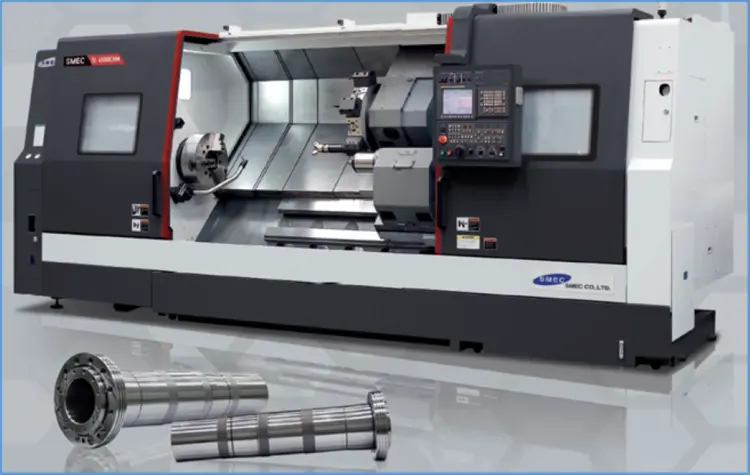

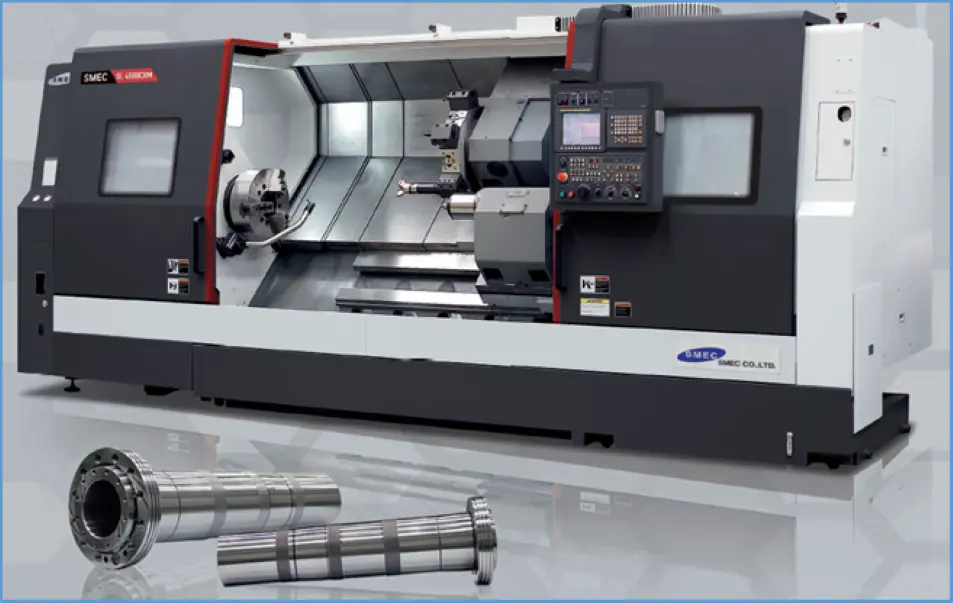

New SMEC SL 4500CL | Precise Universal Lathes

CAPACITY
Swing over the bed 30.51"
Swing over cross slide 24.90"
Maximum turning diameter 27.17”
Maximum turning length 120.28”

MAIN SPINDLE
Chuck size 24”
Spindle nose A2-15
Main spindle motor (Max/Cont) 50 / 40 hp
Spindle speed 1,200rpm
Bore diameter 7.125”
Draw tube ID 6.555”
Spindle torque (Max.) 3,103.5 ft.-lbs.
Spindle drive method 2 Speed gear box

BED, SLIDE & CARRIAGE
X axis travel 13.78”
Z axis travel 123.23”
Rapid traverse (X/Z) 787 ipm / 394 ipm
Guide ways (X/Y/Z) Box Way
Bed Structure 45 deg slant bed
Ballscrew diameter (X/Z) 1.57” 1.97”
Axis feed thrust, Continuous (X/Z) 10,550 lbs. / 13,771
Repeatability (X / Z) ±0.00008” / ±0.00012”

TURRET
Number of tool stations 12 Tools (BMT75)
Turret indexing speed (1 station) 0.2 Seconds
Curvic coupling 3 Piece hyd clamp/Servo index
Coupling diameter / Clamp force 9.96” / 18,524 lbs.
Tool size (turning and facing) 1-1/4” Wedge clamp
Tool size (boring bar max dia) 2-1/2”

TAILSTOCK
Tailstock center (taper) MT #5 (Built In) Dead Center
Quill diameter 6.30”
Quill travel (by hydraulic) 5.91”
Maximum thrust of quill 7,062 lbs.

COOLANT SYSTEM
Coolant pump motor (Max 290 psi) 3 hp (145 psi)
Coolant tank capacity 158 gal.
System type Removable / Independent

HYDRAULIC / LUBRICATION
Hydraulic tank capacity 6.34 gal.
Hydraulic oil required (or equal) ISO VG32
Way lubrication tank capacity 0.79 gal.
Way lubrication oil required (or =) ISO VG68

MACHINE SIZE
Floor Space Requirements (LxWxH) 288” x 91” x 92”
Machine Weight 36,817 lbs.
Power Consumption 60 kVA
Voltage 220V±10%, 60 Hz, 3 phase

CNC
CNC Model Fanuc 0i-TF PLUS
Display unit 15” TFT LCD Color Monitor
