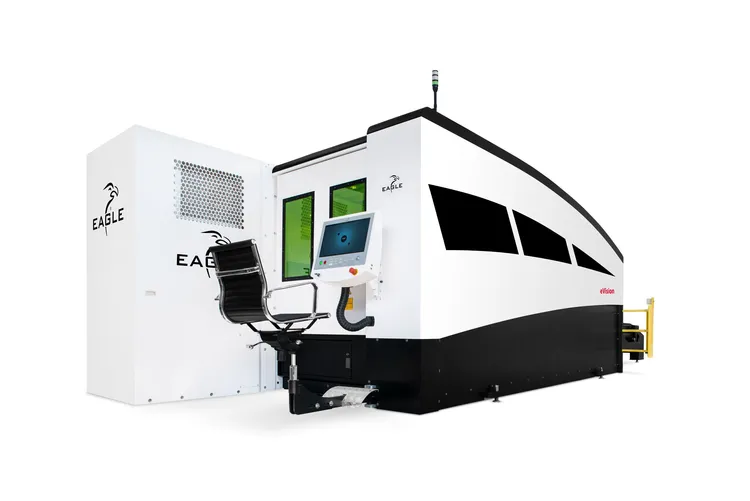

EAGLE eVision series laser cutting machines
Have one to sell?
ConditionNew
New
The eVision series is designed for for all-round versatile efficiency, providing optimum results 24/7 whether you run small or large batches, thick or thin sheets. Offering powers from up to 30kW, acceleration up to 3G, and cutting speeds up to 150 m/min, their great performance and flexibility makes them the ideal choice for those upgrading from older cutting technologies and looking to to take their production to the next level.
eVa cutting head
- The cutting head is the most important component in a laser system, and determines both the performance and reliability of the machine.
Machine body
- The composite body suppresses vibration perfectly, and provides machining accuracy that was previously only reserved for measuring devices.
Traverse
- The steel traverse is manufactured with extreme precision to ensure that high cutting accuracy is provided at fast speeds.
Linear motors
- This is the most well thought-out solution that is currently on the market. These drives are maintenance-free and practically wear-free.
Absolute linear encoders
- Absolute linear encoders are used to determine the position of working elements in laser metal cutting machines.
Laser
- The source of the laser is a fiber laser from IPG, the undisputed world leader in the production of high power fiber lasers.
MAXIMUM SPEEDS
Maximum cutting speed 150 [m/min]
Parallel to the X, Y axes * 150 [m/min]
Simultaneously * 200 [m/min]
* Top speed value is dependent on the machine’s working area
AXIS PARAMETERS
Repetitiveness +/- 0,03 [mm]
Cutting precision +/- * 0,1 [mm]
Max. Acceleration ** 30 [m/s2]
Min. programmable leap 0,001 [mm]
* In accordance with PN-EN ISO 9013 norms.
** Top speed value is dependent on the machine’s working area
