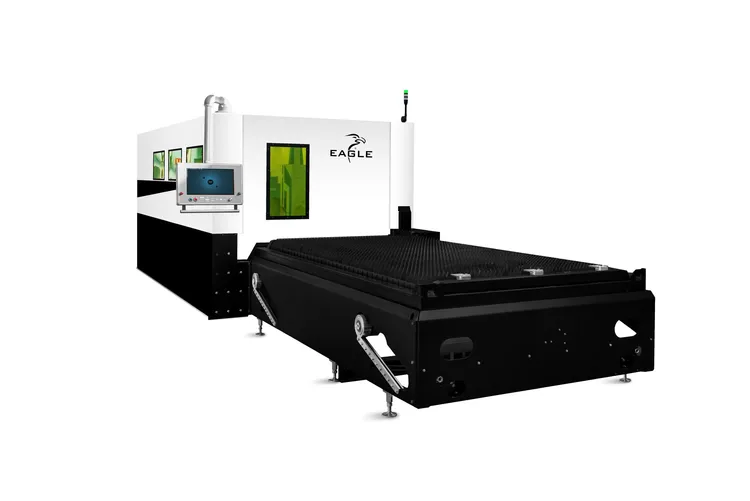

EAGLE eSmart series laser cutting machines
Have one to sell?
ConditionNew
New
The eSmart series is designed for trouble-free, reliable production, delivering great results in little floor space. These sturdy yet compact machines, offer a power range up to 10kW, acceleration up to 2G and cutting speed up to 100 m/min. They’re the most cost-effective Eagle fiber laser cutting machines, providing you with efficiency and value.
eVa cutting head
- The cutting head is the most important component in a laser system, and determines both the performance and reliability of the machine.
Machine body
- The composite body suppresses vibration perfectly, and provides machining accuracy that was previously only reserved for measuring devices.
Traverse
- The steel traverse is manufactured with extreme precision to ensure that high cutting accuracy is provided at fast speeds.
Linear motors
- This is the most well thought-out solution that is currently on the market. These drives are maintenance-free and practically wear-free.
Automatic pallet changer
- The pallet changer can be located at the back of the machine as standard, making it possible to automate the system on the control panels at the front.
Laser
- The source of the laser is a fiber laser from IPG, the undisputed world leader in the production of high power fiber lasers.
MAXIMUM SPEEDS
Maximum cutting speed 100 [m/min]
Parallel to the X, Y axes * 100 [m/min]
Simultaneously * 140 [m/min]
* Top speed value is dependent on the machine’s working area
AXIS PARAMETERS
Repetitiveness +/- 0,03 [mm]
Cutting precision +/- * 0,1 [mm]
Max. Acceleration ** 20 [m/s2]
Min. programmable leap 0,001 [mm]
* In accordance with PN-EN ISO 9013 norms.
** Top speed value is dependent on the machine’s working area
