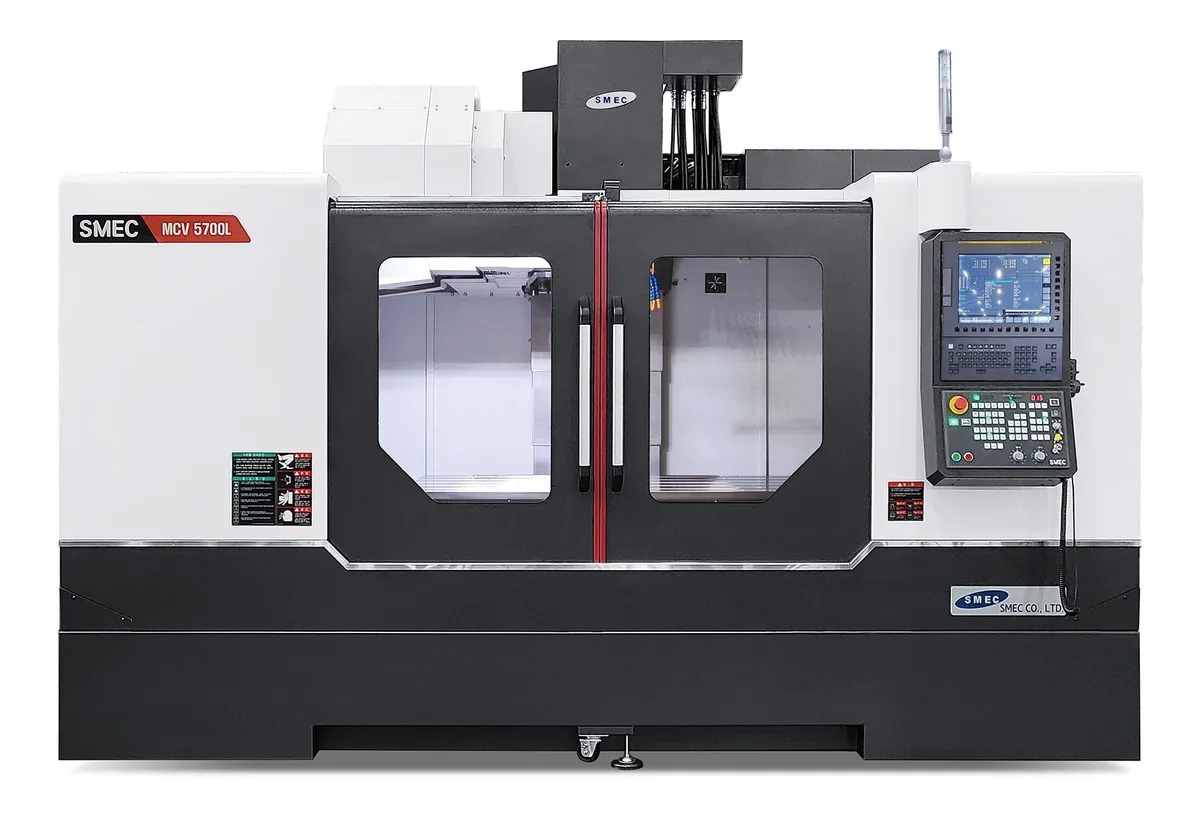

MCV 5700L + SBRT 450

Description

Travel (X/Y/Z) 63" x 22.4" x 20.4" Rotary Table Size 450mm (17.7")
Table Size 66.9" x 22.4" Rotary Table Loading Capacity 330 lbf
Table Loading Capacity 2,204 lbf Rotary Table T slot #14, M12 tap x 36
Table T Slot Spacing X Width (0.7H8 x p4.9 x 4ea) Rotary Table Max Speed 250 rpm
Distance from tabletop to spindle nose 13.8"~34.3" Rapid Traverse (X/Y/Z) 1181 / 1417 / 1181 ipm
Spindle taper CAT40 Cutting feed rate 0.04~590 ipm
Spindle speed 12,000 rpm (Direct Drive) Floor space (L x W x H) (without CC) 196.1 (147.6) x 93.3 x 118.1 in
Spindle motor (30min / max) 20 / 30 hp Machine Weight 17,636 lbf
Maximum spindle torque (Max) 104 lb.ft Power Required 40 kVA
ATC Magazine Capacity 30 Voltage 220V + 10% / 3 Phase
Tool Shank CAT 40 Control Fanuc 0i-MF PLUS
Pull Stud Type 45° Type Shipping dim. Crate #1 (Machine) 159.5" x 90.6" x 108.1"
Maximum tool diameter [adjacent empty] 80 mm [125 mm] (3.14 in [4.92 in]) Shipping dim. Crate #2 (Chip Conveyor) 220.5" x 90.6" x 63.0"
Maximum tool length 11.8"
Maximum tool weight 17.6 lbf
