Machine size L2400 x W2100 x H2300 mm
Print envelope L600 x W600 x H500 mm
Control system Siemens PLC
Inner chamber size Fixed enclosure with fume management and filtration | L1600 x W1500 x H1600 mm
WAAM variant Plasma Transferred Arc (PTA) or *Dual Wire Plasma Transferred Arc (PMAX)

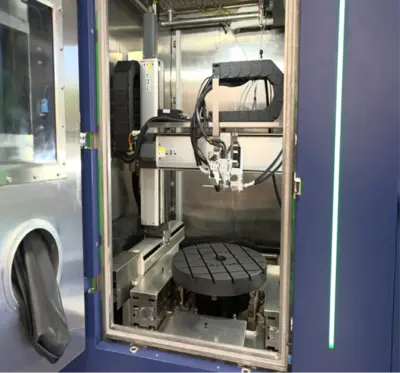

Axes Siemens 3 cartesian (overhead) + 1 rotational
Materials Titanium alloys, stainless steel, nickel alloys, and others
*Multi-material functionality
Rotational table 60kg payload; 500 mm diameter
Sensors Process camera, Weld sensors
*Pyrometer, *IR camera, *Shapetech
Controls
Manual wire position control
*Auto wire control using images based AI
*Auto arc start with interlayer temperature control
*Auto layer height correction

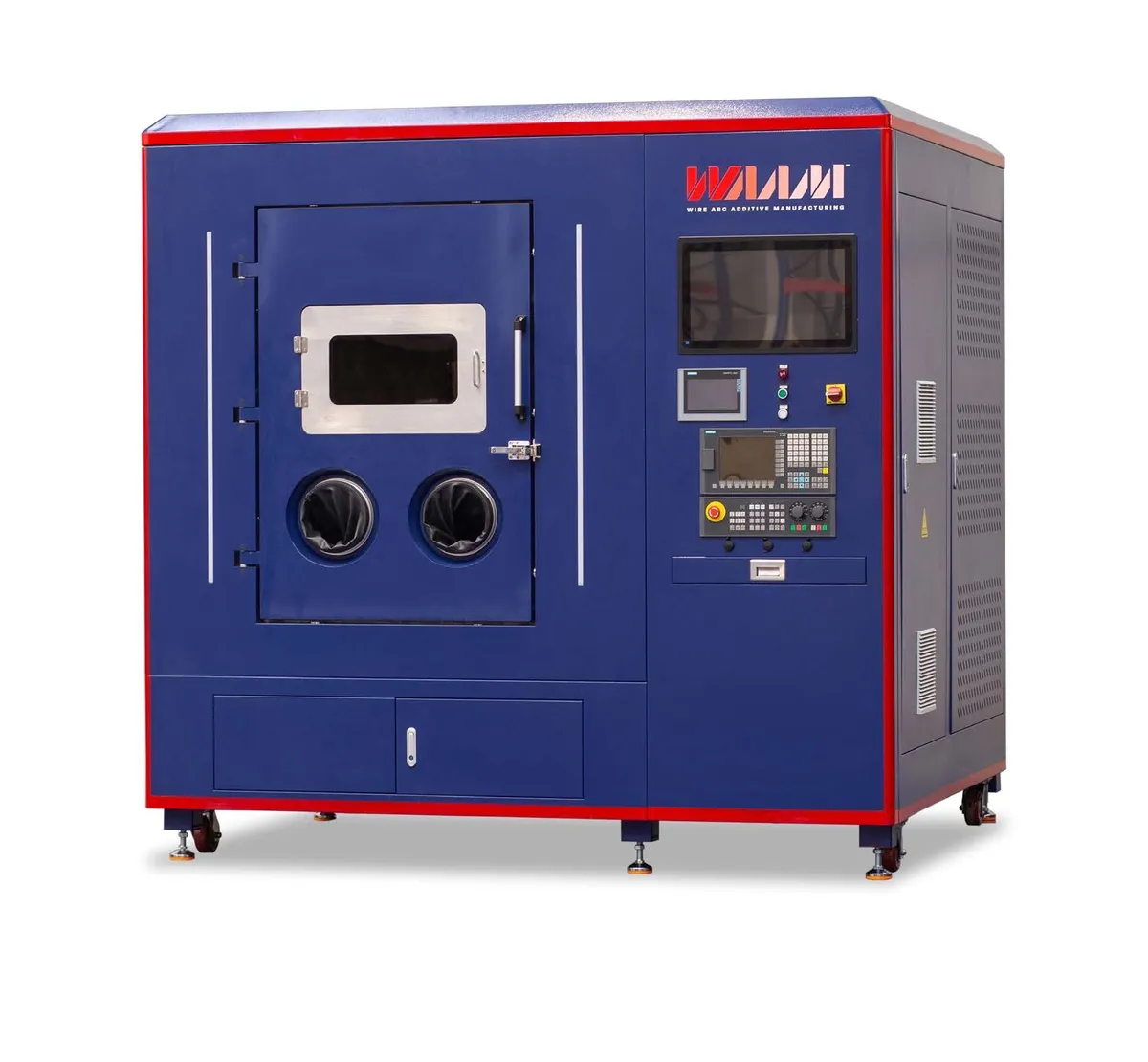

MiniWAAM® is:
• Easy to master / MiniWAAM® comes with our established dual-wire Plasma Transferred Arc process,
a Siemens controller, and all of our dedicated software. You can focus on delivering excellent prints
from day 1.
• Innovative / MiniWAAM® ships natively with multi-material capabilities to produce functionally graded
components or new alloys in-situ.
• Fume extraction and filtration enhance the
workspace environment
• Global argon shielding ensures the quality of
printed parts
• Internal chamber gas circulation paired with active
cooling facilitates continuous deposition
• Comprehensive process monitoring and
data logging
• Cutting-edge dual-wire deposition for increased
deposition rates and multi-material printing
• Real-time process control to prevent failures
• User-friendly interface and system, suitable for
beginners and experts alike
• Premier WAAM technical support
Technical specification Details and optional upgrades (marked with *)
Machine size L2400 x W2100 x H2300 mm
Print envelope L600 x W600 x H500 mm
Control system Siemens PLC
Inner chamber size Fixed enclosure with fume management and filtration | L1600 x W1500 x H1600 mm
WAAM variant Plasma Transferred Arc (PTA) or *Dual Wire Plasma Transferred Arc (PMAX)
Axes Siemens 3 cartesian (overhead) + 1 rotational
Materials Titanium alloys, stainless steel, nickel alloys, and others
*Multi-material functionality
Rotational table 60kg payload; 500 mm diameter
Sensors Process camera, Weld sensors
*Pyrometer, *IR camera, *Shapetech
Controls
Manual wire position control
*Auto wire control using images based AI
*Auto arc start with interlayer temperature control
*Auto layer height correction
