2020 Peel 3D Handheld 3D Scanner – Demo Unit – Excellent Condition
Have one to sell?
ConditionUsed
1 available
Peel to CAD Software Included! Barely used 2020 Peel 3D professional-grade handheld 3D scanner in excellent, like-new condition. This was a demo/display unit that saw very light, careful use only — no wear, no scratches, and full performance. It looks and works exactly like a brand-new unit but at a fraction of the original price.
Why Peel 3D? Simple. Not simplistic.
Just plug and play — no complicated setup or useless gadgets. This scanner delivers high-quality 3D scans of objects ranging from small to large while keeping your project on budget. It automatically recognizes the shape of most objects with zero preparation required. Scanning something very smooth or flat? No problem — just use stick-on targets for perfect results every time.

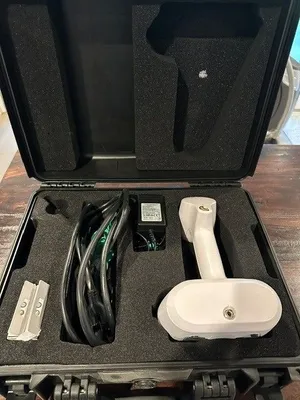

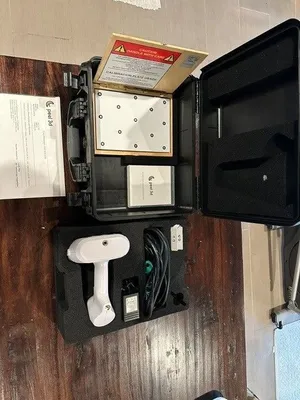

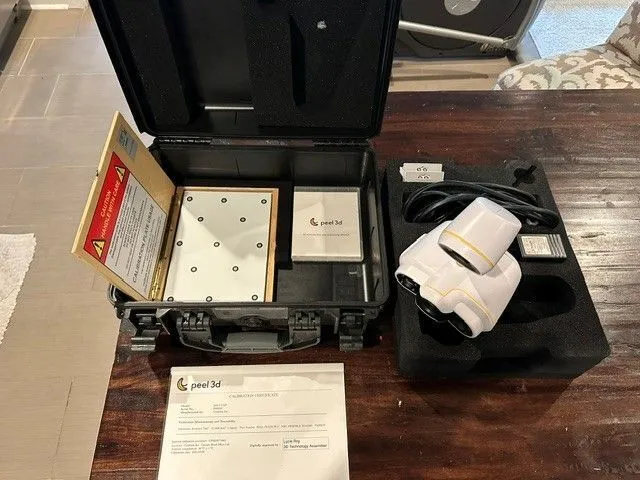

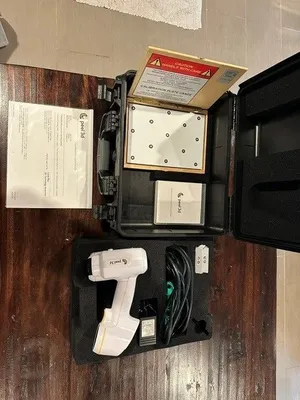

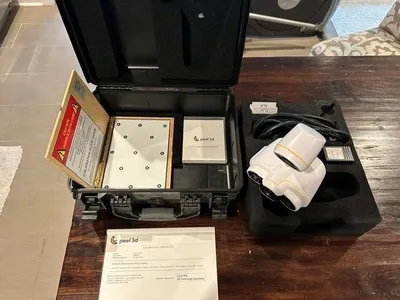

Complete Package Includes:
Peel 3D handheld 3D scanner (2020 demo unit – hardly used)
Peel to CAD software (full reverse-engineering suite that turns your scans directly into usable CAD models)
All original accessories and documentation
TECHNICAL SPECIFICATIONS
authorized distributor
peel 2 CAD-S peel 2 CAD
Part size range (recommended) 0.05 - 0.5 m (2 – 20 in) 0.3 – 3.0 m (1 – 10 ft)
Accuracy Up to 0.100 mm (0.004 in)
Mesh resolution 0.100 mm (0.004 in) 0.250 mm (0.010 in)
Measurement rate 550,000 measurements/s
Volumetric accuracy (based on part size) 0.300 mm/m (0.0036 in/ft) 1
Scanning area 143 x 108 mm (5.6 in x 4.3 in) 380 x 380 mm (15.0 x 15.0 in)
Stand-off distance 380 mm (15 in) 400 mm (15.75 in)
Depth of field 100 mm (4 in) 250 mm (10.0 in)
Light source: White light (LED)
Texture resolution 50 to 250 DPI 50 to 150 DPI
Positioning methods, Geometry and/or targets and/or texture
Dimensions 154 x 178 x 235 mm (6 x 7 x 9.2 in) 150 x 171 x 251 mm (5.9 x 6.7 x 9.9 in)
Connection standard 1 x USB 2.0
Output formats .dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr, .iges, .step, .dxf
Operating temperature range 5–40°C (41–104°F)
Operating humidity range (non-condensing) 10–90%
Certifications EC Compliance (Electromagnetic Compatibility Directive,
Low Voltage Directive, IP50, WEE
