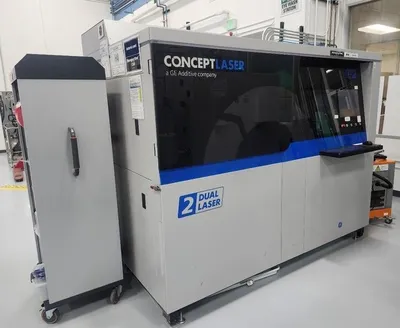

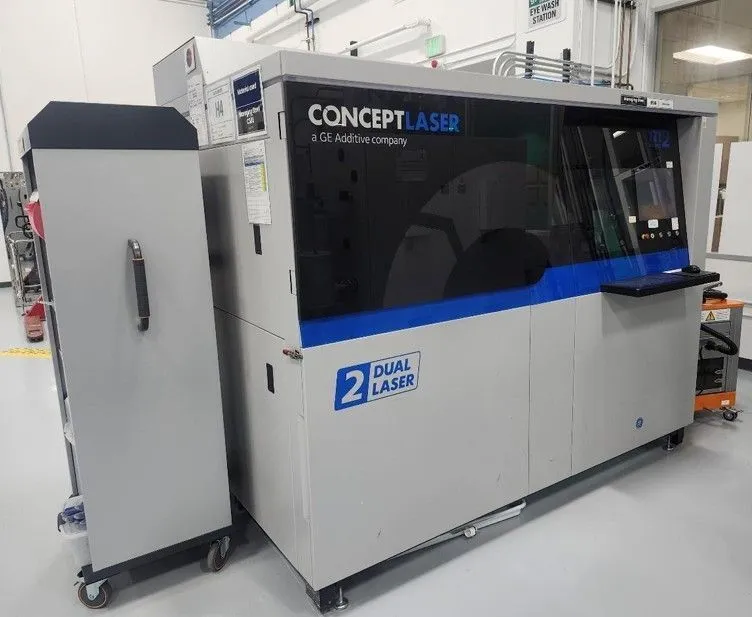

2014 Concept Laser M2 Series 3+ Metal Powder Bed Dual Laser Fusion 3D Printer

Key Features & Benefits:
Dual-laser system with overlapping scan fields for significantly faster build rates (up to ~80% productivity gain vs. single-laser equivalents).
Patented Laser USING® process with excellent inert-gas management and powder handling.
Open architecture for full process parameter customization.
Reliable for series production, functional prototypes, and complex geometries.

Technical Specifications
Build Envelope (X × Y × Z): 250 × 250 × 280 mm³
(Note: Pre-2018 models; later Series 3 updates increased Z to 350 mm)
Laser System: 2 × Ytterbium (Yb) fiber lasers (standard 2 × 200 W cw; optional 2 × 400 W cw)
Layer Thickness: 20 – 80 µm
Theoretical Build Rate: 2 – 35 cm³/h (material- and power-dependent)
Scan Speed: Up to 7 m/s (4.5 m/s with variable focus)
Focus / Spot Diameter: 50 µm (optional variable focus: 50 – 500 µm)
Minimum Feature Size: ~150 µm
Inert Gas: Argon or Nitrogen
Power Supply: 400 V 3NPE, 32 A (approx. 3.5–5.5 kW consumption)
Machine Dimensions (W × D × H, approx.): 2,450 × 2,400 × 1,650–1,987 mm (varies by configuration)
Weight (approx.): 2,000–2,500 kg (without powder)

Compatible Materials:
Stainless steels (316L, 17-4PH, etc.)
Aluminum alloys (AlSi10Mg, AlSi12)
Titanium alloys (Ti6Al4V / Ti64)
Nickel-based superalloys (Inconel 718, Inconel 625)
Cobalt-chrome (CoCr)
Tool steels and others
