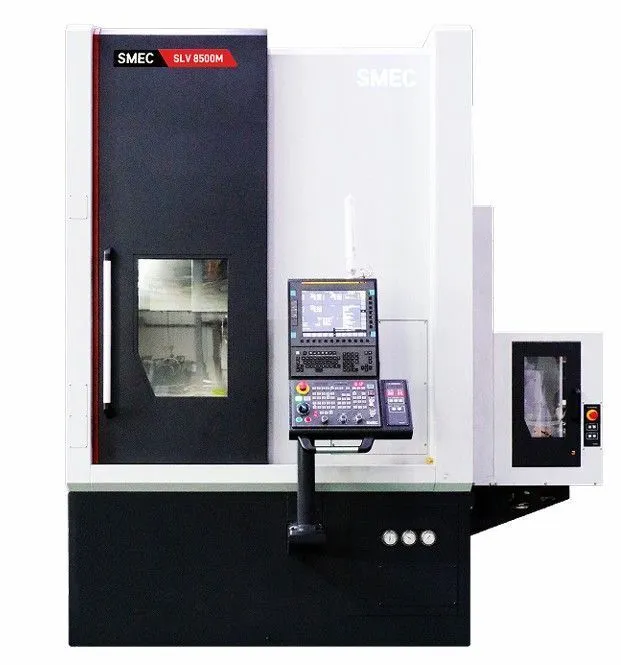

SMEC SLV 8500/M

Machine Specifications [ ] : Optional
DESCRIPTION Unit SLV 8500 SLV 8500M
Capacity
Swing over Bed mm (inch) ø890 (35.04)
Recommend turning diameter mm (inch) ø450 (17.72)
Maximum turning diameter mm (inch) ø850 (33.47)
Maximum turning length mm (inch) 780 (30.71)
Travels
Travel

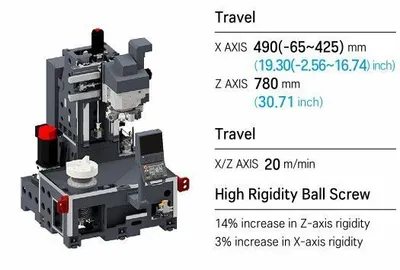

X Axis mm (inch) 490 (19.30)
Z Axis mm (inch) 780 (30.71)
Feed rate
X Axis m/min (ipm) 20 (787.41)
Z Axis m/min (ipm) 20 (787.41)
Guideway type-BOX GUIDE
Main
Spindle

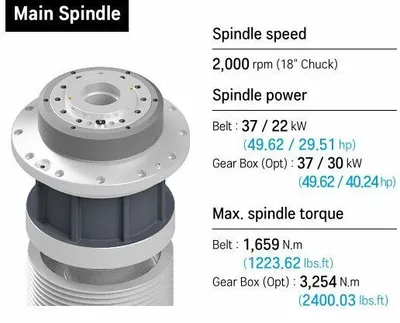

Spindle speed [Max.] rpm 2,000[2,000/1,800/1,500]
Spindle drive mechanism-BELT[+GEAR]
Spindle torque for turning [Max./Cont.] N·m (lbs.ft) 1,659/473[3,254/528]
(1223.62/348.87[2400.03/389.44])
Spindle nose ASA A2-11
Min. spindle indexing angle deg-0.001
Turret

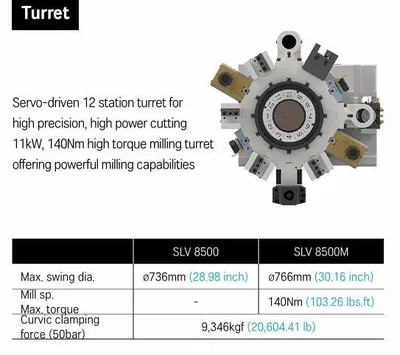

Number of tool stations ea 12 12 (BMT75)
Shank size for square tool mm (inch) □32X32 (1.26X1.26)
Shank diameter for boring bar mm (inch) ø63 (2.49)
Live tool torque [Max./Cont.] N·m (lbs.ft)-140/70 (103.26/51.63)
Rotary tool spindle speed rpm-4,000
ATC
(OPT.)
Tool storage capacity ea 12
Tool shank-CAPTO C6
Max. tool diameter mm (inch) ø90 (3.55)
Max. tool length mm (inch) 400 (15.75)
Max. tool mass kg (lb) 10 (22.05)
Tool Setter(OPT.) Tool Presetter Type-REMOVABLE / AUTO
Motor
Main spindle Capacity (Max./Cont.) kW (hp) 37/22[37/30] (49.62/29.51[49.62/40.24])
Rotary tool spindle Capacity (Max./Cont.) kW (hp)-11/5.5 (14.76/7.38)
CNC Controller (Monitor)-Fanuc-0iTF PLUS (15")
