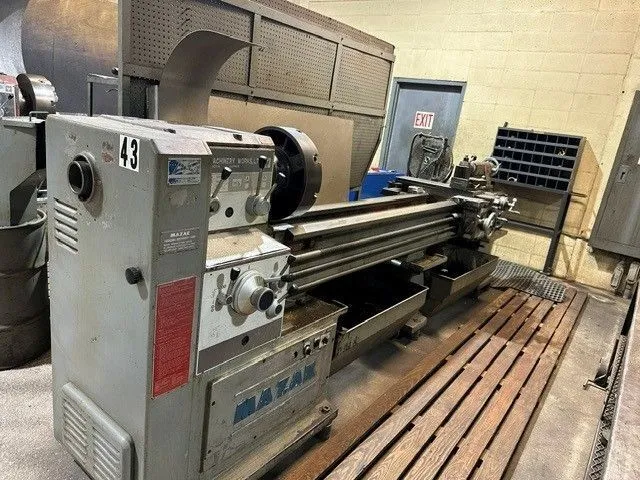

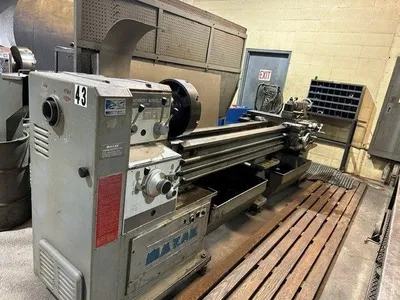

MAZAK 21" 80" Bed --Great Condition--

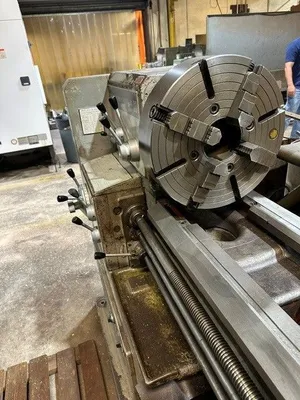

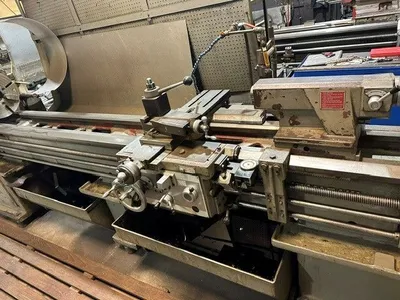

Capacity & Dimensions Swing Over Bed: 21" (530 mm) Swing in Gap: 28" to 30" (710 mm – 760 mm) diameter Distance Between Centers: 80" (2,000 mm) Swing Over Cross Slide: Approximately 13" – 14" Spindle & Headstock Spindle Bore: Available in standard (2.125") and large-bore (3.125") variants, depending on the specific model type (e.g., A/B or C/D series) Spindle Mount: Camlock (typically D1-8 or D1-11) Spindle Speeds: Ranging from 12 to 2,000 RPM (typically includes 12 to 16 gear-driven speed steps) Spindle Motor: 10 HP to 15 HP (depending on whether it is a standard "A" or heavy-duty "D" model) Carriage & Tailstock Cross Slide Travel: Approximately 12" – 13" Tailstock Taper: Morse Taper No. 5 (MT5) or No. 6 (MT6) Quill Diameter: ~2.75" to 3.5" Quill Travel: ~6" to 8" Threading & Feeds Threading Capability: Inch and Metric (via quick-change gearbox) Longitudinal Feeds: 0.0015 to 0.100 IPR Cross Feeds: 0.0007 to 0.050 IPR Standard Equipment 12" to 18" 3-jaw and 4-jaw chucks Steady rest and Follow rest Coolant system Thread chasing dial
