BODOR C4 6kw

Lead time 90-100 days
Warranty 5 years laser head, 5 years laser source, 5 years control system.
Water Chiller/Transformer included.
Basic Parameter
Working area "4000mm*2000mm
(13.12′*6.56′)"
Max. linkage speed 110m/min
Max. acceleration 1.5G

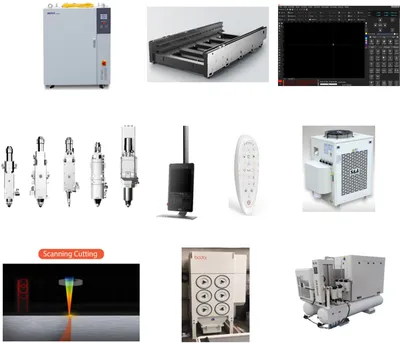

Configuration
Laser source BodorPower
Laser head BodorGenius
Machine bed "Tenon and mortise structure bed "
Gantry structure Stretched Aluminum gantry
X-axis、Y-axis、Z-axis Servo motor and driver Bodor
Linear Rails Bodor
Rack Bodor
Protective Enclosure Yes
Enhanced-partition Dust Removal Yes
Control system Bodor Thinker
Display size 21.5 inches
Door-open Protection Yes
Intelligent alarm Yes
Water Chiller Yes
Dust removal Centrifugal fan
File format dxf、dwg、plt、lxd、cnc、txt、gen
Transformer Yes
Power Requirements 220V/440V/480V 60HZ 3PHASE (Up to Clients Power Requirement)
Total power capacity/current with 6KW source at 380V 56.0kVA/85.1A
Intelligent function
One-click processing Yes
Remnant Typesetting Yes
Visual edge positioning Yes
Visual collision detection Yes
Ultra-clean filter Yes
Bodor Lightning perforation technology Yes
High Speed Cutting Expert Database Yes
Air pressure intelligent control Yes
Automatic adjustment of cutting gas pressure Yes
Mineral casting anti burning Yes
Auto-focus of laser head Yes
Laser cutting technology expert database Yes
Ergonomic Remote Control (Bodor Mango®) Yes
Active anti-collision function Yes
Intelligent anti-shake Yes
High quality Cutting Expert Database Yes
Gas-saving steady flow nozzle Yes
Intelligent maintenance reminder Yes
WIFI internet connection Yes
Bodor Cloud service Yes
Performance
Table load bearing "6kW:1570kg(25mm/0.984″)
12kW:1886kg(30mm/1.18″)"
Machine overall dimensions "11383mm*3266mm*2592mm
(37.35′*10.72′*8.5′)"
Requirements for sheet "
Plate thickness≥0.8mm（0.0315″）"
Overall weight 5936kg（13086.64lb）
Z axis travel 370mm(14.57″)
Positioning accuracy ±0.05mm/m(0.00197″)
Repositioning accuracy ±0.03mm(0.0018″)
Φ30mm roundness ≤0.15mm(0.00591″)
□30mm adjacent side dimension difference ≤0.06mm(0.00236″)
□190mm adjacent side dimension difference ≤0.15mm(0.00591″)
□190mm diagonal size difference ≤0.20mm(0.00787″)
