BODOR A6 PLUS 12kw

Have one to sell?
337-591-9722
john@bayoumachinery.com
ConditionNew
1 available
Have one to sell?

Overview

Type:
Laser Cutters
Manufacturer:
BODOR
Model:
A6 PLUS
Condition:
New - In-Stock
Stock #:
2142
Status:
For Sale

Description

BODOR A6 PLUS 1200W Laser Cutter—brand new. Experience unmatched precision and efficiency with this state-of-the-art equipment. Ideal for any high-demand cutting application, ensuring top-tier performance for your projects.
A6 Plus 12000W Laser Power
"Bodor laser A6 Plus model 20'x8.2' table size fiber laser cutting machine.
BodorThinker Control system.
BodorPower Laser source.
BodorGenius Laser head."
37kw Air Compressor 1 set Included
First year onsite service 1 set Included
Freight&Tariff Included
Installation & Training Cost Included
Lead time 70-80 Days
Warranty 5 years laser head, 5 years laser source, 5 years control system.
Water Chiller/Transformer included.

Length15.26'4,651.2 mm
Width9.02'2,749.3 mm
Height7.22'2,200.7 mm
Nominal sheet size X118"2,997.2 mm
Nominal sheet size Y59"1,498.6 mm
Cutting area X118 mm4.6457"
Cutting area Y59 mm2.3228"
Cutting area Z4 mm0.1575"
Max. positioning speed parallel axis x, y52 in
Bilateral repeatability of positioning of one axis R (ISO 230-2:2014)0.0012 in
Averaged, bilateral position deviation of one axis M (ISO 230-2:2014)0.002"0.0508 mm
Max. workpiece weight2200 lb
Machine weight8500 lb
Table change over time10 s10 sec.
Power4000 w4,000 W
PolarizationUnpolarizedUnpolarized
Wavelength10641064
Max sheet thicknesses (Steel)0.79"20.066 mm
Max sheet thicknesses (Stainless Steel)0.39"9.906 mm
Max sheet thicknesses (Aluminum)0.31"7.874 mm
Max sheet thicknesses (Brass)0.2"5.08 mm
Max sheet thicknesses (Copper)0.16"4.064 mm
Total electrical consumption of system18 kw18 kW
ControlCNCCNC
Dimensions4650 x 2750 x 2200 mm4650 x 2750 x 2200 mm
Weight8500 lb8500 lb

Basic Parameter
Working area 20'x8.2'
Max. linkage speed 100m/min

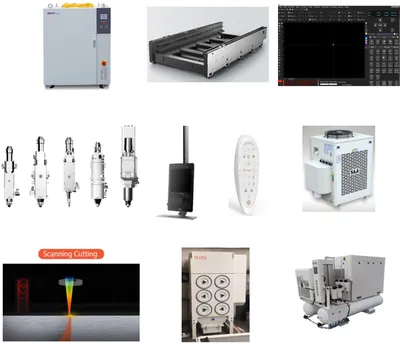

Configuration
Laser source Bodor Power
Laser head BodorGenius
Machine bed Tenon and mortise structure bed
Gantry structure Stretched Aluminum gantry
X-axis、Y-axis、Z-axis Servo motor and driver Bodor
Linear Rails Bodor
Rack Bodor
Integral aluminum cantilever for high pressure steel mould casting Yes
Control system Bodor Thinker
Display size 21.5 inches
Water Chiller Yes
"
Intelligent alarm" Yes
File format IGS、DXF、G Code、DWG
Transformer Yes
Power Requirements 220V/440V/480V 60HZ 3PHASE (Up to Clients Power Requirement)
Total power capacity/current with 6KW source 45.6KVA/69.3A
Intelligent function
Bodor Lightning perforation technology Yes
High Speed Cutting Expert Database Yes
Crash Safety Yes
"
Auto-focus of laser head" Yes
Laser cutting technology expert database Yes
Ergonomic Remote Control (Bodor Mango®) Yes
Intelligent anti-shake of sheet edge Yes
Anti-slag Protection Yes
Gas-saving steady flow nozzle Yes
Automatic adjustment of cutting gas pressure O2
Automatic lubrication Yes
"
Intelligent maintenance reminder" Yes
WIFI internet connection Yes
Active anti-collision function Yes
Bodor Cloud service Yes
Performance
Max. acceleration 1.5G
Table load bearing 3595kg
Machine overall dimensions 4749mm*2886mm*1815mm
Overall weight 3700kg
Z axis travel 100mm
Positioning accuracy ±0.05mm/m
Repositioning accuracy ±0.03mm
Φ30mm roundness ≤0.15mm
□30mm adjacent side dimension difference ≤0.06mm
□190mm adjacent side dimension difference ≤0.15mm
□190mm diagonal size difference ≤0.20mm
