BODOR A3 3kw 5'x10'

Have one to sell?
337-591-9722
john@bayoumachinery.com
ConditionNew
1 available
Have one to sell?

Overview

Type:
Laser Cutters
Manufacturer:
BODOR
Model:
A3
Condition:
New - In-Stock
Stock #:
2144
Status:
For Sale

Description

BODOR A3 laser cutter, brand new. Offers 1000.0 power with a cutting area of 3.048m x 1.524m x 0.1m, ideal for precision projects. Reliable and efficient tool for enhancing your production capabilities.
A3 3000W Laser Power
"Bodor laser A3 model 5'x10' table size fiber laser cutting machine.
BodorThinker Control system.
BodorPower Laser source.
BodorGenius Laser head." 3000W
Freight&Tariff Included
Installation & Training Cost Included
Warranty 5 years laser head, 5 years laser source, 5 years control system.
Water Chiller/Transformer included.
Air Compressor

Length5.97'1,819.7 mm
Width4.3'1,310.6 mm
Height3.51'1,069.8 mm
Nominal sheet size X51.18"1,300 mm
Nominal sheet size Y35.43"899.92 mm
Cutting area X51.2 m2,015"
Cutting area Y35.4 m1,394.9"
Cutting area Z0.1 m3.937"
Max. positioning speed parallel axis x, y2362 in
Max. simultaneous positioning speed2,362"59,995 mm
Bilateral repeatability of positioning of one axis R (ISO 230-2:2014)0.00118 in
Averaged, bilateral position deviation of one axis M (ISO 230-2:2014)0.002"0.05 mm
Machine weight617 lb
Power100 w100 W
PolarizationPolarizedPolarized
Wavelength10.010.0
Total electrical consumption of system1.5 kw1.5 kW
ControlCNCCNC
Dimensions1820mm x 1310mm x 1070mm1820mm x 1310mm x 1070mm
Weight280kg280kg

Core Specifications
Laser Power: 3000 W (BodorPower)
Working Area: 5' × 10' (3048 mm × 1524 mm)
Max Linkage Speed: 100 - 110 m/min (328 - 360 ft/min)
Max Acceleration: 1.5 G
Z-Axis Travel: ~ 4 inches (100 - 370 mm, model dependent)
Positioning Accuracy: ±0.05 mm/m
Repositioning Accuracy: ±0.03 mm
Table Load Capacity: ~ 2,000 to 3,490 lbs (911 to 1582 kg)
Machine Dimensions: ~ 185" × 110" × 70"
Machine Weight: ~ 12,000 to 22,000 lbs
Cutting Capacity
The 3 kW laser output is ideal for medium-thickness metals and is typically capable of processing:
Mild Carbon Steel: Up to 1" (25 mm)
Stainless Steel: Up to 0.5" (12 - 15 mm)
Aluminum: Up to 0.5" (12 - 15 mm)

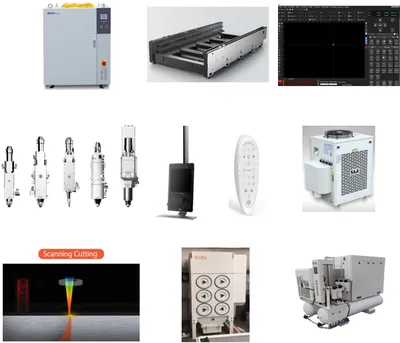

Key Hardware & Software
Laser Head: Bodor Genius with auto-focus and collision prevention
Control System: BodorThinker (often via an intuitive touchscreen interface)
Gantry: Stretched aluminum for high rigidity and speed
Bed: Heavy-duty mortise-and-tenon or steel-mold casting
