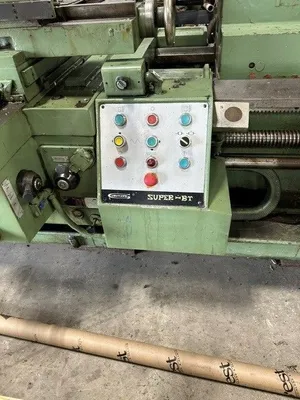

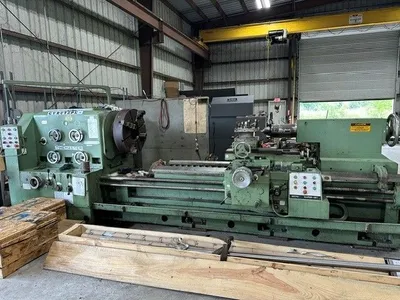

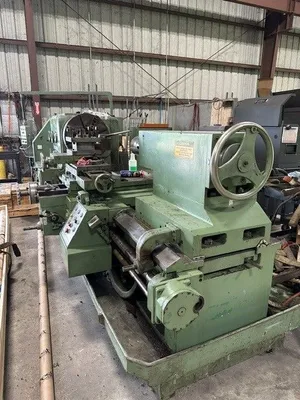

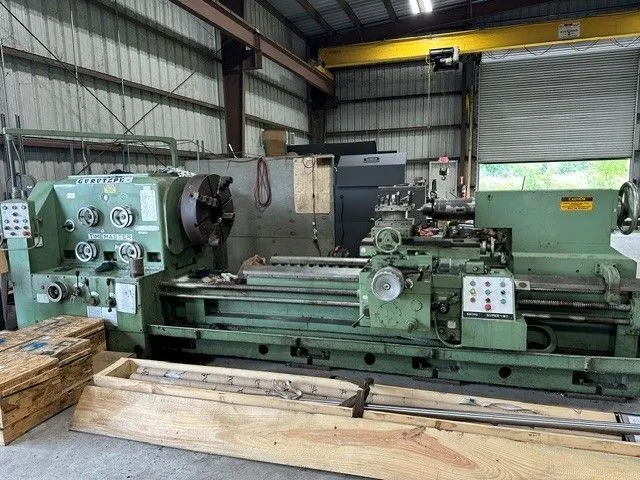

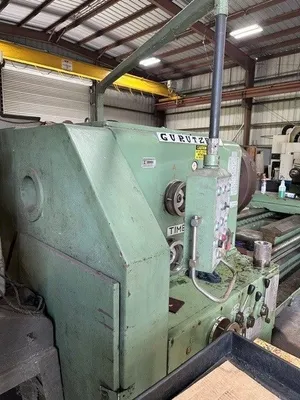

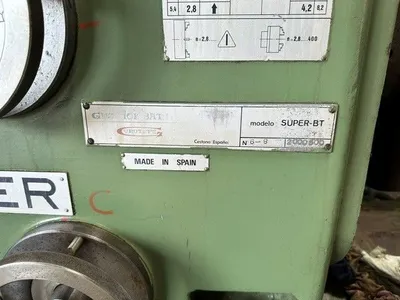

GURUTZPE SUPER BT

Capacity
Distance Between Centers (DBC): 2000 mm
Center Height: 500 mm
Swing Over Bed: 1000 mm to 1100 mm (varies by variant, with up to 1580+ mm available in versions with a gap)
Maximum Workpiece Weight: Up to 3,000 kg to 10,000 kg between centers (depending on steady rest and chuck usage)
Headstock & Spindle
Spindle Bore: 102 mm (standard) to 105 mm
Spindle Speeds: Features a wide 24- to 36-step range. 2.8 to 400 RPM (with some variants going up to 500 RPM)
Spindle Nose: ASA or DIN standard (typically Camlock or Flanged)
Motor & Drives
Main Spindle Motor: 18 kW to 22.4 kW (30 - 40 HP)
Feeds & Threads: Equipped with full Inch/Metric threading capabilities and power rapid traverse
Tailstock Quill Diameter: 130 mm to 180 mm
Quill Stroke: 260 mm to 300 mm
Spindle Taper: Morse Taper 6 (MT6)
Additional Features: Heavy-duty cast-iron base with hardened and ground guide ways
Includes accessories: 4-jaw chucks, steady rests, and a coolant system
